Tool change: cylinder-sensor (limit) - send signal - push-pull tool changer
The spindle pressure is 0.6 MPa
Processing accuracy 0.02mm
It takes only 6s to change the tool holder
| Cutting Area: | |
|---|---|
| Working Table: | |
| Spindle: | |
| Drive Motors: | |
| Guide rail: | |

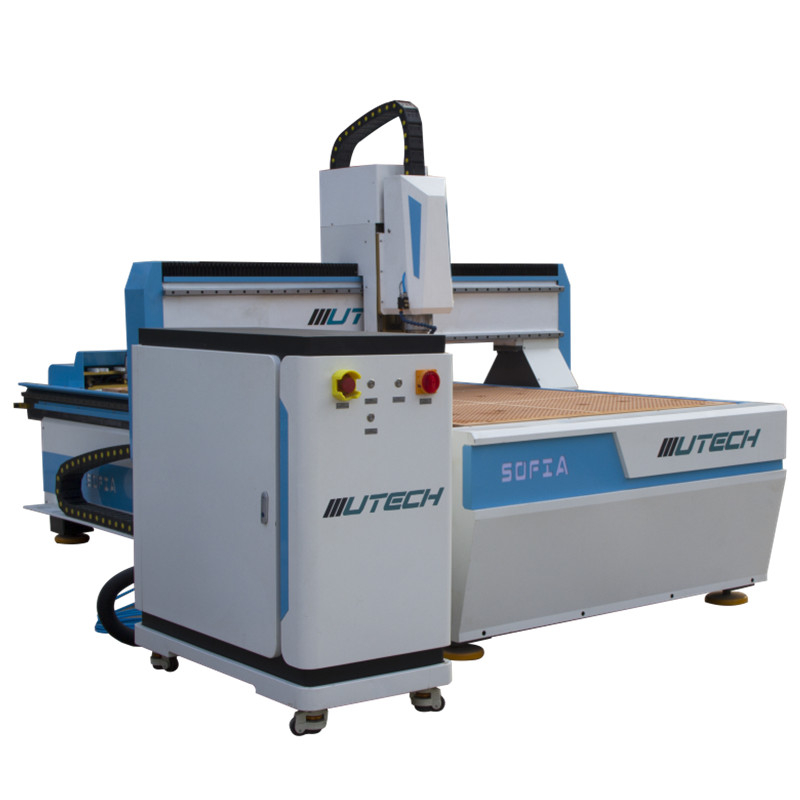

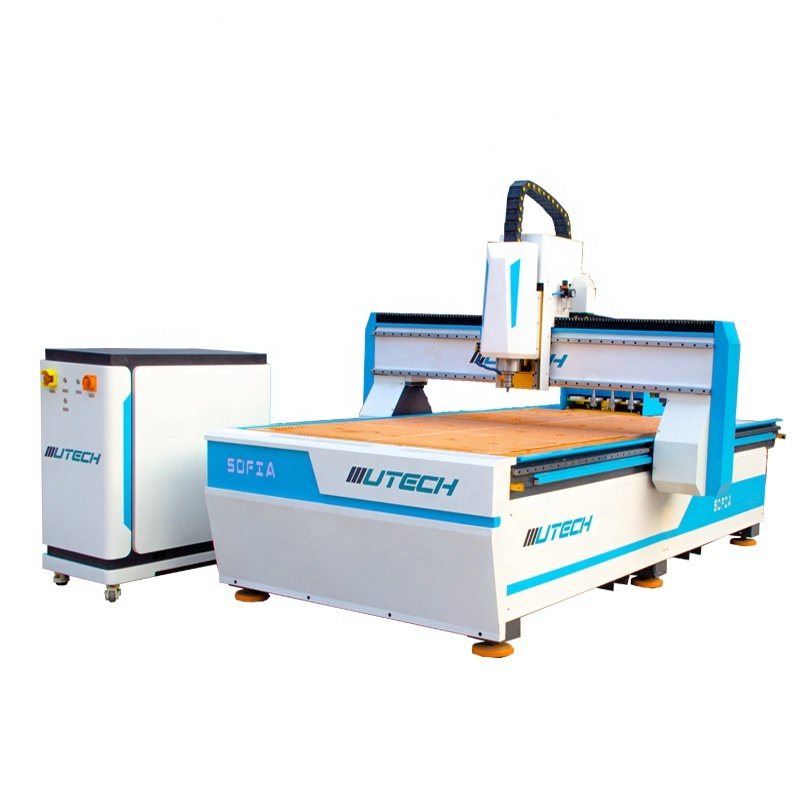

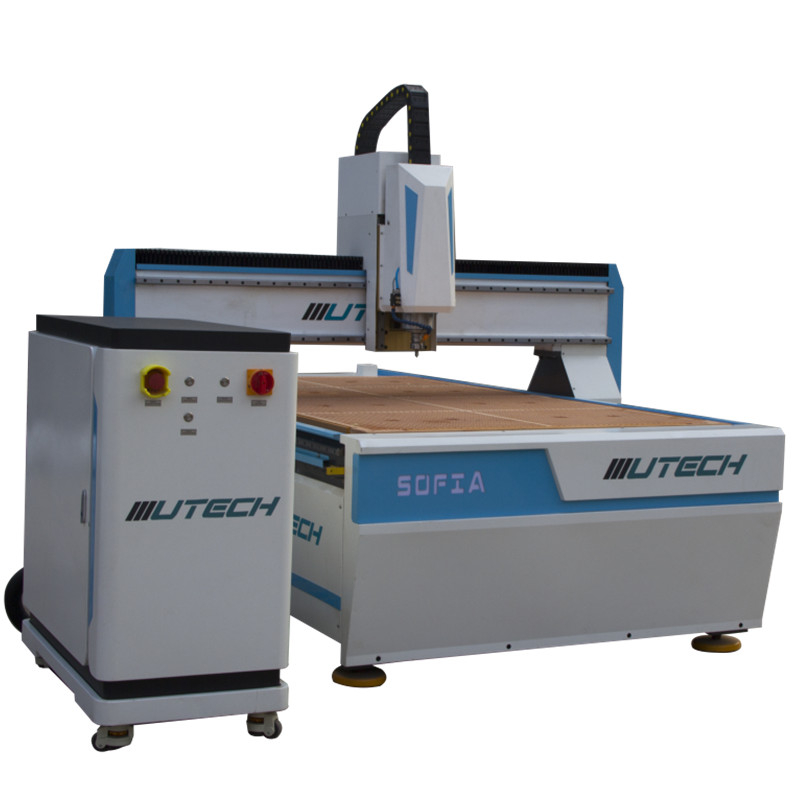

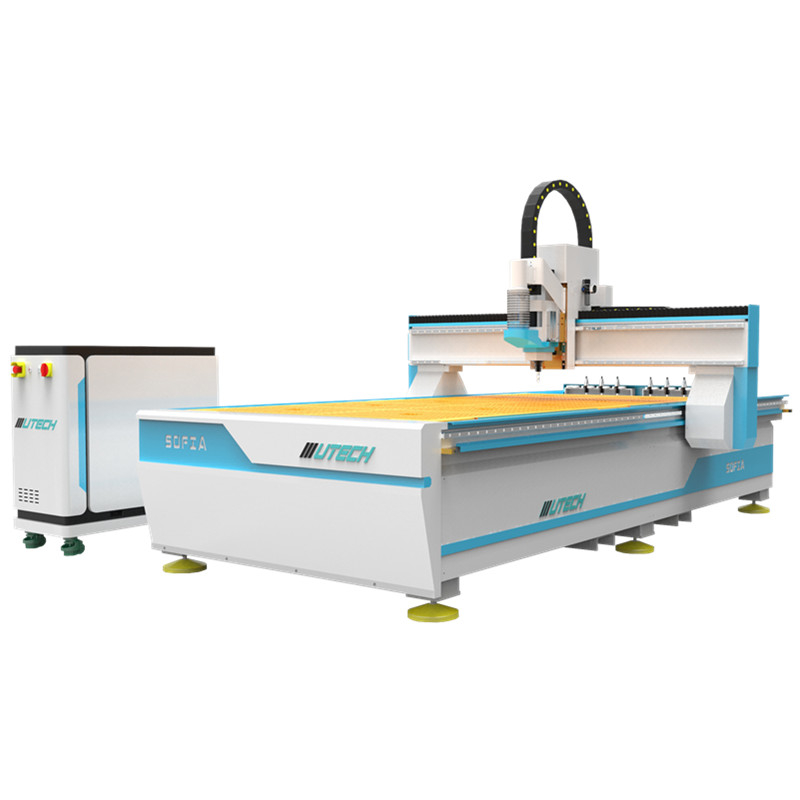

SOFIA M300S ATC-1325
UTECH
1325 Cnc Router Plywood Carving Machine Wood Cnc Router 3d Carving Machine ATC Cnc Router for Cabinet
Product Description
UTECH M3000S ATC CNC Router is manufactured using global state-of-the-art techniques with advanced engineering, workmanship, and built to last with all-steel construction and superior components such as precision linear bearings and rails. Key features are a 9KW(12HP) high-frequency automatic tool changer spindle with a 4-position tool rack, pneumatically retractable vacuum hood, and multi-zone vacuum t-slot table. The system includes Servo motors and controls with a handle controller.
Auto Tool Changer Principle:
The machine uses a cylinder power system to control the pushing and retracting of the tool magazine and is equipped with more than four sensors to repeatedly confirm the working environment to ensure the correct operation of the system. Compared with the traditional fixed tool magazine structure, the error tolerance rate is greatly improved, ensuring the service life of the tool magazine and the danger brought by operating errors. The increased tool magazine shell effectively prevents dust accumulation, reduces airflow, and plays a certain role in inhibiting tool holder oxidation.
SOFIA-ATC's Technical Parameters
| Model | SOFIA M3000S ATC |
| Working Area | 1300x2500mm(1500x3000mm, 2000x3000mm, 2000x4000mm is optional) |
| Control system | Weihong NK105 G3 handle controller (NK280, Syntec is optional) |
| Spindle | 9kw air cooling spindle(Chinese brand, HSD is optional) |
| Spindle speed | 12000-24000RPM |
| Motor and Driver | Leadshine hybrid servo + SHIMPO reducer structure |
| Inverter | 11kw Hpmont |
| Table surface | T-slot and Vacuum Table |
| Lubrication system | Automatic lubrication system |
| Tool Change | 4pcs Linear Tool Changer |
| Mist cooling sprayer | Automatic oil mist cooling sprayer |
| Transmission | X,Y Axis: 1.25M Helical rack, Z axis by Taiwan TBI ball screw Whole machine by PMI 25 Rail Linear Guide |
Application Industry
Advertising industry: Acrylic cutting, density board cutting, snowflake cutting, double color board carving, various advertising boards.
Furniture industry: Cabinet doors, wooden doors, solid wood, mahogany furniture, antique furniture, all kinds of composite sheet cutting carving.
Plate processing industry: Insulation board, plastic work piece, PCB board, anti-double board, epoxy resin, ABS, PP, PE and other carbon mixtures.
Crafts industry: Artificial marble, PVC, wood, plexiglass, copper aluminum and so on.
Decoration industry: The screen, wave plate, wood, artificial marble, organic board, decorative board, double color board and other materials on various exquisite patterns and text carving.
FAQ
1/ How will the machine package be?
------If machine delivery via LCL, then would be packed with wrapping film, EPE foam, and standard export plywood box; If machine delivery via FCL, then don't need a wood box, would be packed with wrapping film and EPE foam.
2/ What can the machine do?
------This kind of machine belongs to our SOFIA ATC series, it's suitable for the advertising and woodworking industry, most of the materials, like wood, MDF, acrylic, aluminum, foam, PVC, plastic, etc, all could be processed. Much suitable for the woodworking industry, for making furniture, such as cabinets, doors, tables, and chairs, etc.
Machine configurations and designs could be customized. Optional parts like auto tool changer, oscillating knife, CCD camera, oil mist cooling system, water tank, etc, all could be changed according to what you want. Just tell us your requirement.
3/ After the machine arrived if I don't know how to assemble and use it, how can I do it?
------Except specific machine, usually be installed already, you just need to connect some wires, and some extra parts such as a water pump, vacuum pump, etc(if your machine has). About specific machines, such as the 4th axis CNC, when we dismantle at our factory, we'll take video for you, and our design team also will make 360° video, for showing machine how to dismantle and assemble, then you'll know how you can do it. We also provide online and Tel help, usually if our customer meets some problem, we'll build a talking group via Whatsapp, Skype, or WeChat with our designer, technical person, seller together, could solve the problem quickly.
4/ If my parts are broken, how can I do it?
------The whole machine has one year warranty. If some parts are broken, you can take a video for us, we'll help you check the problem, if cannot be solved, we'll send a new one for you for replacement. If you buy our machine, about spare machine parts, we also give you an agent price.
