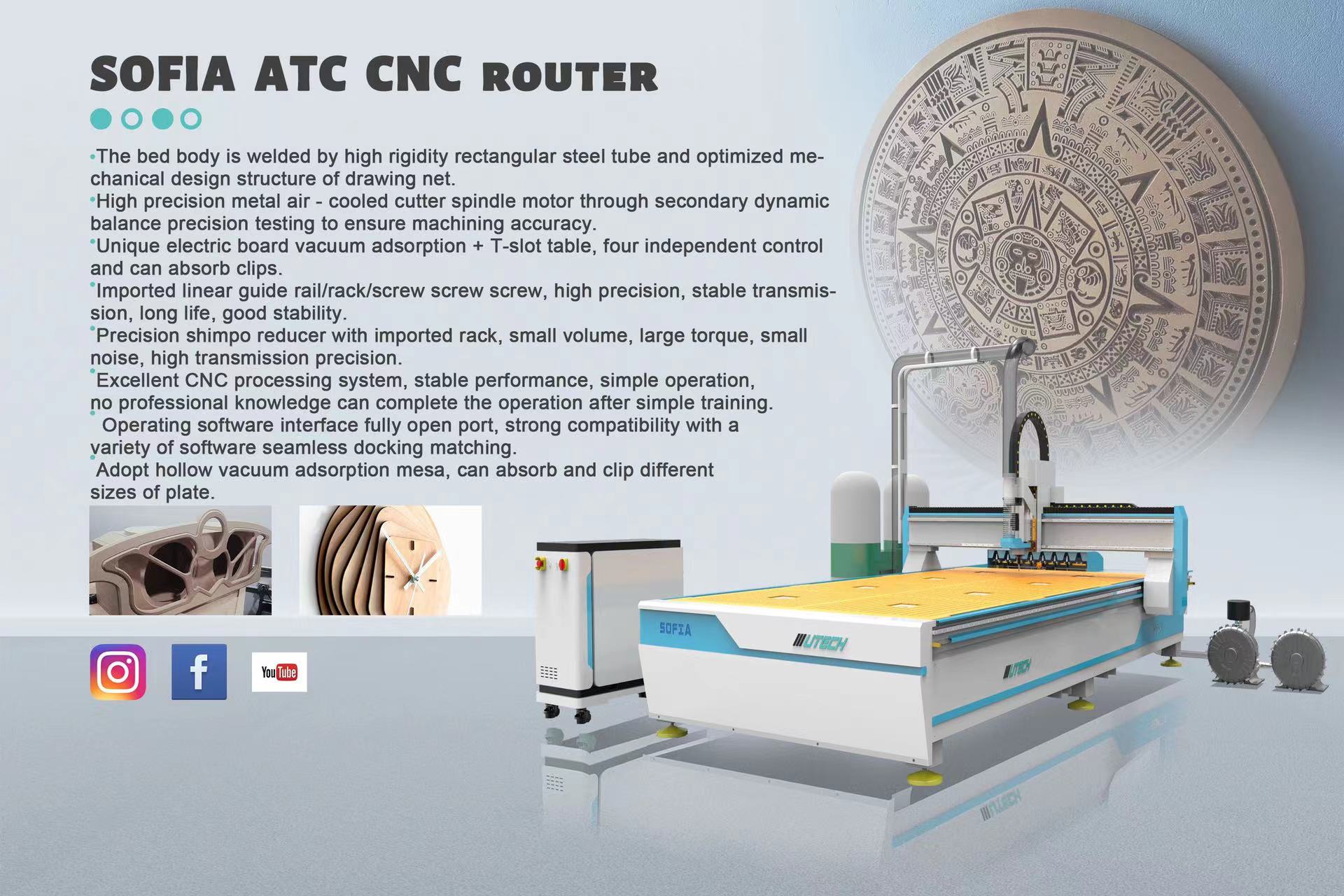

Sofia ATC CNC Router
UTECH
3 Axis 1325 SOFIA ATC Cnc Router Machine for MDF
Sofia Series ATC CNC Router- An ATC reduces production time by automatically changing cutters between tool paths, thus eliminating the need for the CNC operator to change and zero tools individually. The ATC allows this kind of machine to do the full job, even when different tooling is required to make different types of cuts – like cabinets and furniture – or where different bits are needed for roughing and finishing passes – like signs and complex 3D carvings. A machine equipped with an ATC can perform operations normally done on other pieces of equipment, eliminating the need for additional machines in the shop.
This kind of machine is fully customizable. Options include Oscillating knife,Visual positioning system(CCD) which uses a camera and software to eliminate errors while cutting, the Automatic Tool Changer for rapid tool changes while machining,a misting system for use while cutting aluminum and other non-ferrous metals, CAD/CAM software,control system and many more.
Parameters
Product Name | ATC CNC Router |
X Working Area | 1300mm |
Y Working Area | 2500mm |
Z Working Area | 20mm |
X, Y, Z Traveling Position Accuracy | 0.02mm |
X, Y, Z Repositioning Accuracy | 0.02mm |
Table Surface | Vacuum Table+T-slot table |
Vacuum Pump | Water pump 7.5kw |
X,Y axis Transmission | 1.25 module Xinyue gear rack |
Z axis Transmission | Taiwan TBI Ball Screw |
Spindle Power | ATC metal type 7.5kw water cooling spindle |
Rotary Speed | 0-24,000rpm |
Drive Motors | Taiwan Delta servo motor and driver |
Working Voltage | AC 380V/50Hz |
Operating System | NK105-G3 system |
Tool Storage Capacity | 4 Tools (optional) |
Max. Traveling speed | 60,000mm/min |
Max Working speed | 25,000mm/min |
Rail Configuration | Taiwan PMI MSA25-S square rail |
Packing | Wooden Case |
3 Axis 1325 SOFIA ATC Cnc Router Machine for MDF
Sofia Series ATC CNC Router- An ATC reduces production time by automatically changing cutters between tool paths, thus eliminating the need for the CNC operator to change and zero tools individually. The ATC allows this kind of machine to do the full job, even when different tooling is required to make different types of cuts – like cabinets and furniture – or where different bits are needed for roughing and finishing passes – like signs and complex 3D carvings. A machine equipped with an ATC can perform operations normally done on other pieces of equipment, eliminating the need for additional machines in the shop.
This kind of machine is fully customizable. Options include Oscillating knife,Visual positioning system(CCD) which uses a camera and software to eliminate errors while cutting, the Automatic Tool Changer for rapid tool changes while machining,a misting system for use while cutting aluminum and other non-ferrous metals, CAD/CAM software,control system and many more.
Parameters
Product Name | ATC CNC Router |
X Working Area | 1300mm |
Y Working Area | 2500mm |
Z Working Area | 20mm |
X, Y, Z Traveling Position Accuracy | 0.02mm |
X, Y, Z Repositioning Accuracy | 0.02mm |
Table Surface | Vacuum Table+T-slot table |
Vacuum Pump | Water pump 7.5kw |
X,Y axis Transmission | 1.25 module Xinyue gear rack |
Z axis Transmission | Taiwan TBI Ball Screw |
Spindle Power | ATC metal type 7.5kw water cooling spindle |
Rotary Speed | 0-24,000rpm |
Drive Motors | Taiwan Delta servo motor and driver |
Working Voltage | AC 380V/50Hz |
Operating System | NK105-G3 system |
Tool Storage Capacity | 4 Tools (optional) |
Max. Traveling speed | 60,000mm/min |
Max Working speed | 25,000mm/min |
Rail Configuration | Taiwan PMI MSA25-S square rail |
Packing | Wooden Case |
3 Axis 1325 SOFIA ATC Cnc Router Machine for MDF
>>>Automatic Tool Change
Machine can be fitted with an automatic tool change carousel type/linear tools type4,8 or even16 tool stations. It can be mounted in the gantry to minimise teh tool change time
>>>Spindle Options
Spindle power outputs frim 7.5kw to 11kw, a choice of manual or fully automatic tool change for specialist applications.
>>>Vacuum table
Vacuum zones allow you to turn on the valve. Arrange each zone's vacuum seal into the shape of the material to provide well-distributed suction.
>>>NK-105G3
Upload your design to NK105 G3 handle controller with a USB drive. Sensor compensates for the change in tool lengths. That change might seem tiny, but it makes a huge difference to the finished product.
>>>Automatic oil Lubrication system
Automatic lubricatior, there's an oilcan and timing indicator, you can set data for regulary lubricate screw and guide rail.
>>>Taiwan linear guide and rack transmission
Double dustproof structure, prevent debris from onto guide and rack, affect accuracy
3 Axis 1325 SOFIA ATC Cnc Router Machine for MDF
>>>Automatic Tool Change
Machine can be fitted with an automatic tool change carousel type/linear tools type4,8 or even16 tool stations. It can be mounted in the gantry to minimise teh tool change time
>>>Spindle Options
Spindle power outputs frim 7.5kw to 11kw, a choice of manual or fully automatic tool change for specialist applications.
>>>Vacuum table
Vacuum zones allow you to turn on the valve. Arrange each zone's vacuum seal into the shape of the material to provide well-distributed suction.
>>>NK-105G3
Upload your design to NK105 G3 handle controller with a USB drive. Sensor compensates for the change in tool lengths. That change might seem tiny, but it makes a huge difference to the finished product.
>>>Automatic oil Lubrication system
Automatic lubricatior, there's an oilcan and timing indicator, you can set data for regulary lubricate screw and guide rail.
>>>Taiwan linear guide and rack transmission
Double dustproof structure, prevent debris from onto guide and rack, affect accuracy
3 Axis 1325 SOFIA ATC Cnc Router Machine for MDF
>>>Advertising Industry
Acrylic cutting Density board cutting
Snowflake cutting Double color board carving
Various advertising boards
>>>Furniture Industry:
Cabinet doors Wooden doors
Solid wood Mahogany furniture
Antique furniture
All kinds of composite sheet cutting carving
>>>Plate Processing Industry:
Insulation board Plastic work piece
PCB board Anti-double board
Epoxy resin ABS
PP PE
Other carbon mixtures
>>>Crafts Industry:
Artificial marble PVC
Wood Plexiglass
Copper Aluminum and so on
>>>Decoration Industry:
The screen Wave plate
Wood Artificial marble
Organic board Decorative board
Double color board and other
3 Axis 1325 SOFIA ATC Cnc Router Machine for MDF
>>>Advertising Industry
Acrylic cutting Density board cutting
Snowflake cutting Double color board carving
Various advertising boards
>>>Furniture Industry:
Cabinet doors Wooden doors
Solid wood Mahogany furniture
Antique furniture
All kinds of composite sheet cutting carving
>>>Plate Processing Industry:
Insulation board Plastic work piece
PCB board Anti-double board
Epoxy resin ABS
PP PE
Other carbon mixtures
>>>Crafts Industry:
Artificial marble PVC
Wood Plexiglass
Copper Aluminum and so on
>>>Decoration Industry:
The screen Wave plate
Wood Artificial marble
Organic board Decorative board
Double color board and other
3 Axis 1325 SOFIA ATC Cnc Router Machine for MDF
