Name: 3d Cnc Wood Carving Router Automatic Tool Change
Brand: UTECH
SKU: 555275278
Rating: 5.0 (5 reviews)

3d Cnc Wood Carving Router Automatic Tool Change

Available in bed sizes of:
* 1500 x 3000 mm
* 2000 x 3000 mm
* 2000 x 4000 mm
Custom bed sizing is also available.

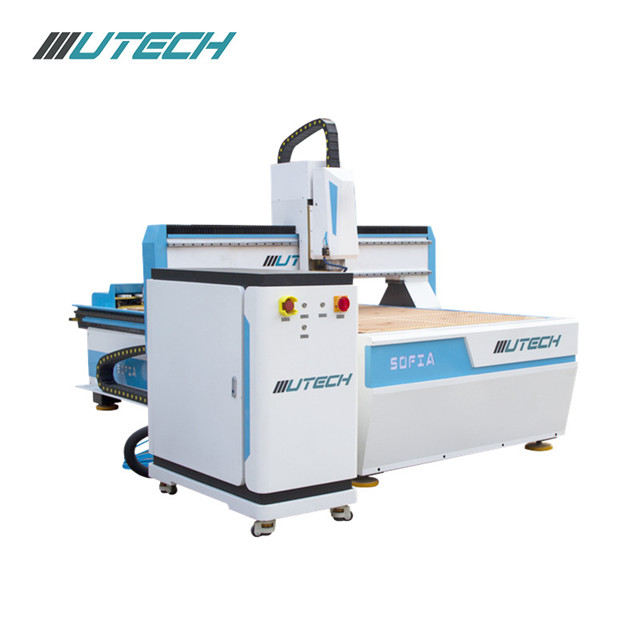

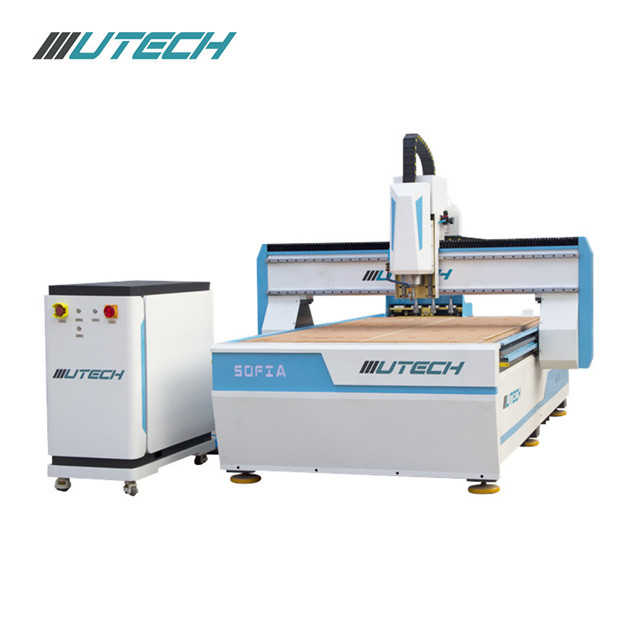

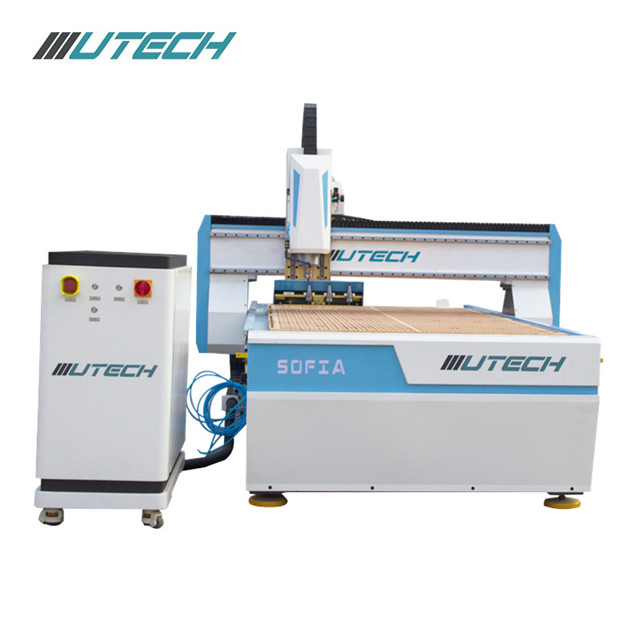

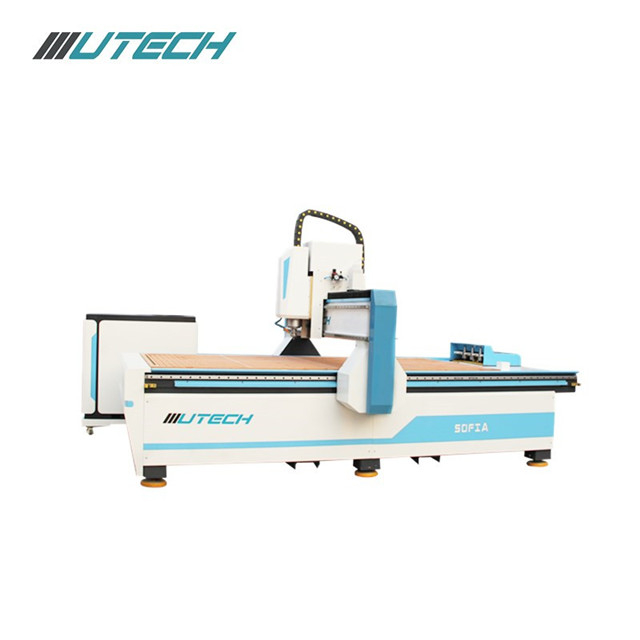

UTECH M3000S ATC CNC Router is manufactured using global state-of-the-art techniques with advanced engineering, workmanship and built to last with all steel construction and superior components such as precision linear bearings and rails. Key features are a 9KW(12HP) high frequency automatic tool changer spindle with 4-position tool rack, pneumatically retractable vacuum hood and multi-zone vacuum t-slot table. The system includes Servo motors and controls with handle controller.

Model	Sofia M3000S
Working area	1300x2500mm(1500x3000mm, 2000x3000mm, 2000x4000mm is optional)
Control system	Weihong NK105 handle controller(NK260, Syntec is optional)
Spindle	9kw air cooling spindle(Chinese brand, HSD is optional)
Spindle speed	0-24000RPM
Motor and Driver	Leadshine hybrid servo reducer structure
Inverter	11kw inverter
Table surface	T-slot and Vacuum Table&7.5kw vacuum pump
Lubrication system	Automatic lubrication system
Calibration	Auto tool calibration
Mist cooling sprayer	Automatic oil mist cooling sprayer
Transmission	X,Y Axis: 1.25M Helical rack, Taiwan Hiwin/PMI 25# Rail Linear Bearing. Z Axis: Taiwan PMI Rail 25# Linear Bearing & Taiwan TBI Ball Screw Whole machine with Japan SHIMPO reducer 1:5 or 1:10

配件 SOFIA

Advertising industry	Acrylic cutting, density board cutting, snowflake cutting, double color board carving, various advertising boards.
Furniture industry	Cabinet doors, wooden doors, solid wood, mahogany furniture, antique furniture, all kinds of composite sheet cutting carving.
Plate processing industry	Insulation board, plastic work piece, PCB board, anti-double board, epoxy resin, ABS, PP, PE and other carbon mixtures.
Crafts industry	Artificial marble, PVC, wood, plexiglass, copper aluminum and so on.
Decoration industry	The screen, wave plate, wood, artificial marble, organic board, decorative board, double color board and other materials on various exquisite patterns and text carving.

Easily cut aluminium on a CNC Router with the right tooling.

When people mention CNC routers, most of us would think about cutting and engraving wood on a machine like this.  However, CNC routers are also used for materials such as aluminium, brass and copper.Whilst they will never be as efficient at processing metals when you compare them with Plasma and fibre laser technology, they can still produce projects out of these materials.

How do you cut aluminium on a CNC router?
Firstly you have to make sure the part will be secure so having an adequate vacuum or a clamping system would be a must. This is due to the higher amounts of rotational force required to process metals.
Another important part of the process is getting your tooling right for the job in hand, for example, if you are processing 3mm aluminium you need a tool that will be able to cut through (the tool length is imperative), too short it won’t cut through but equally too long the tool will flex and you won’t get the desired finish.
 When cutting metal objects on a CNC the cutters and material also produce a fair bit of heat.  You can dry cut but you will get a much better finish if you use a tooling lubricant that not only helps produce the best finish but also extends the life of your tooling, thus saving on costs.

So why would you use a CNC router to cut metal?
Firstly if you already have a CNC machine, it would save you the cost of purchasing a whole new machine.  Secondly, you may not have the budget to purchase another dedicated metal cutting machine to process your material, lastly, it could also be a case of not having the extra space in the workshop to have both machines.

 If you get all of the above correct, you will be producing metal parts in no time on your CNC router.

1628845975(1)

Working Table Size:	1300×2500
Motor and driver:	9kw Automatic Tool Change Spindle
Table:	11kw Hpmont
Tool changer:	8
Certification:	Taiwan Linear Guide Rail
Availability:



Inquire Add to Basket

3d Cnc Wood Carving Router Automatic Tool Change
