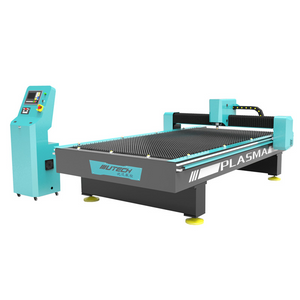

Encrypted Blade Sawtooth Table Plasma Cutting Machine for Aluminum Carbon Steel

Before confirming the production order, we will provide the rendering picture and 360-degree panoramic video, so that customers can fully understand the style and structure of the machine, so as to ensure that the actual machine meets the requirements of customers, so as to avoid the discrepancy between the real object and customers' imagination caused by various communication deviations.

Size:
Working Table:
Transmission:
Reducer:
Motor&driver:
Availability:
Encrypted Blade Sawtooth Table Plasma Cutting Machine for Aluminum Carbon Steel
Encrypted Blade Sawtooth Table Plasma Cutting Machine for Aluminum Carbon Steel
Encrypted Blade Sawtooth Table Plasma Cutting Machine for Aluminum Carbon Steel
Encrypted Blade Sawtooth Table Plasma Cutting Machine for Aluminum Carbon Steel
Encrypted Blade Sawtooth Table Plasma Cutting Machine for Aluminum Carbon Steel
Encrypted Blade Sawtooth Table Plasma Cutting Machine for Aluminum Carbon Steel
  • UT-1530P

  • UTECH

Encrypted Blade Sawtooth Table Plasma Cutting Machine for Aluminum Carbon Steel


For a quick quote and get full details, there's something Sofia wanna confirm with you.

1. How about the machine size you need? The hot sell type is 1325, 1530.
2. How about the plasma power you need? if you're not sure, also could tell me your material and cutting thickness.
3. Do you have 380V three-phase voltage?


等离子黑底



UTECH CNC Plasma Cutting Machine's characteristics:

(1) Welded thick-walled steel structure, after special treatment, no distortion for the whole structure high precision, and long-service lifetime.
(2) Cutting system use Beijing Starfire system/ Start system/ FLMC-2300A or DSP system; Equipped with automatic height controller (THC controller), which can according to your material planeness, cutting head can automatically stable, and fast adjust.
(3) Taiwan HIWIN linear rail, ensure vertical section, more precision.
(4) Suitable software: Artcam/ Fastcam/ Starfire etc.
(5) FASTCAM programming software based on AutoCAD automatic programming and material system.
(6) FASTCAM is designed for all kinds of NC cutter with cutting software, the software can help the user completing various complex parts drawing, programming, material, using convenient, also bring the obvious economic benefit.
(7) If you cut thick material, according to actual use, we’ll add a water tank for you for free, to absorbs a large amount of smoke generated during cutting.
(8) Machine could be customized, whatever specifications, appearance, etc. Any request you’ve could tell us directly.


                         UTECH SESAME Plasma Cutting Machine's Parameters
Processing area
1500*3000mm
Cutting head
Plasma/Flame cutting head or together
Z axis feeding height
100mm
Working material
Iron, aluminum, carbon steel, stainless steel and others
Running speed
0-15000mm/min
Cutting speed
0-10000mm/min
Power
10.5KW
Input voltage
380V/220V
Power supply frequency
50HZ/60HZ
Plasma power supply
45A, 63A, 65A, 85A, 100A, 105A, 120A, 125A, 160A, 200A, 300A, etc.
File transfer mode
USB interface
Driving mode
XY axis by 1.25M helical gear transmission, Z axis by Arc voltage control
Motor&driver
JMC Stepper motor and driver, UTECH patent type reducer 1:4
Cooling System
DSP A12S/STARFIRE/START/FANGLING
Guide rail
Taiwan HIWIN/PMI 20mm linear square rail
Plasma generator(power)
China Huayuan/Huarong, America Hypertherm
Floating cutting gun mode of motion
Automatic and Pneumatic test


UTECH CNC Plasma Cutting Machine's applications:

It is widely used in the process of cutting metal plates in the machinery manufacturing industry, engineering industry, and metal fabrication and can cut mild steel, stainless steel, aluminium, copper and many kinds of non-ferrous metal.


等离子样品应用-官网

UTECH SESAME Plasma Cutter's Advantages:


1/ Plasma table has two types, one is flat cutting table, the other is sawtooth cutting table. UTECH plasma usually adopt 5mm thick sawtooth table. It also depends on your request, all could be customzied.

2/ SESAME machine legs and machine body could be splitted freely, then could help you save much space and shipping freight. A 20GP container could accommodate 6 sets machine.
You can choose to disassemble or not disassemble according to your personal needs during transportation. The installation is also very simple. We will provide the installation video for your reference.

3/ Standard machine is equipped with three sets stepper motor&driver, brand is JMC/Leadshine.

XY axis is equipped with three sets UTECH patent type reducer structure.

Advantage:

Reduce motor speed and increase machine transmission torque.

Compared with the synchronous belt, the reducer has the characteristics of low backlash, low noise, high strength, and accurate deceleration effect.

4/ Standard machine is equipped with underneath water table, in the cutting process, the cutting part is placed under water for cutting, which can effectively reduce the smoke and dust, and avoid the smoke that is harmful to the human body.

Whole machine with a piece water pipe, connect with cutting nozzle.

5/ The blade spacing is encrypted, 40 or 70mm, and the force area is increased, so there are advantages in processing small materials.

sesame cnc router




Packing:

1/ If machine delivery via LCL, then would packed with wrapping film, EPE foam, and standard export plywood box.
2/ If machine delivery via FCL, then dont need wood box, would packed with warpping film and EPE foam.

Shipping:

We support machine delivery via express, air transportation, land transportation and sea transportation.
1/ Such as some small machine, Mini CNC Router or Small CO2 Laser Machine and Fiber Laser Marking Machine, usually delivery via
express and air transportation.
2/ If you wanna us help you delivery to domestic warehouse or Russia, Kazakhstan etc, usually delivery via land transportation.
3/ Large machine or some countries where shipping is more convenient, usually suggest choose sea transportation.

You can choose any way you'd prefer, we also will give you some proper suggestions.
