Model: | |
---|---|
Working Table: | |
Drive Motors: | |
XY Structure: | |
Z Structure: | |
Spindle Speed: | |
Operating System: | |
Availability: | |
S2-1325
UTECH
Factory Direct Supply 1325 CNC Router Machine
for Acrylic
The most important features of this machine:
1. Msachine body and legs can be separated freely, saving packaging and transportation costs
2. Forklift space is designed underneath the machine, which is convenient for loading and unloading.

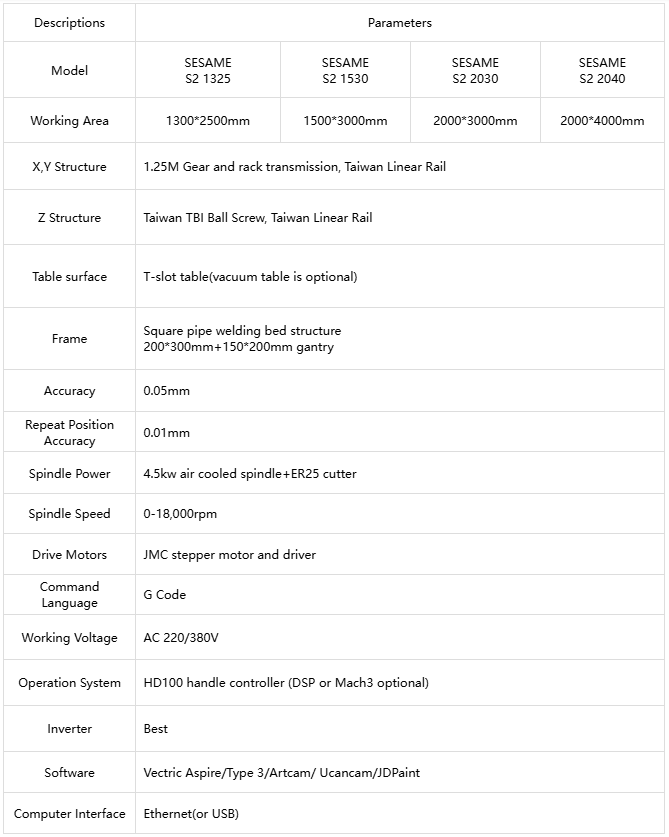

Parameters
Descriptions | Parameters | |||
Model | SESAME S2 1325 | SESAME S2 1530 | SESAME S2 2030 | SESAME S2 2040 |
Working Area | 1300*2500mm | 1500*3000mm | 2000*3000mm | 2000*4000mm |
X,Y Structure | 1.25M Gear and rack transmission, Taiwan Linear Rail | |||
Z Structure | Taiwan TBI Ball Screw, Taiwan Linear Rail | |||
Table surface | T-slot table(vacuum table is optional) | |||
Frame | Square pipe welding bed structure 200*300mm+150*200mm gantry | |||
Accuracy | 0.05mm | |||
Repeat Position Accuracy | 0.01mm | |||
Spindle Power | 4.5kw air cooled spindle+ER25 cutter | |||
Spindle Speed | 0-18,000rpm | |||
Drive Motors | JMC stepper motor and driver | |||
Command Language | G Code | |||
Working Voltage | AC 220/380V | |||
Operation System | HD100 handle controller (DSP or Mach3 optional) | |||
Inverter | Best | |||
Software | Vectric Aspire/Type 3/Artcam/ Ucancam/JDPaint | |||
Computer Interface | Ethernet(or USB) |
Factory Direct Supply 1325 CNC Router Machine
for Acrylic
The most important features of this machine:
1. Msachine body and legs can be separated freely, saving packaging and transportation costs
2. Forklift space is designed underneath the machine, which is convenient for loading and unloading.
Parameters
Descriptions | Parameters | |||
Model | SESAME S2 1325 | SESAME S2 1530 | SESAME S2 2030 | SESAME S2 2040 |
Working Area | 1300*2500mm | 1500*3000mm | 2000*3000mm | 2000*4000mm |
X,Y Structure | 1.25M Gear and rack transmission, Taiwan Linear Rail | |||
Z Structure | Taiwan TBI Ball Screw, Taiwan Linear Rail | |||
Table surface | T-slot table(vacuum table is optional) | |||
Frame | Square pipe welding bed structure 200*300mm+150*200mm gantry | |||
Accuracy | 0.05mm | |||
Repeat Position Accuracy | 0.01mm | |||
Spindle Power | 4.5kw air cooled spindle+ER25 cutter | |||
Spindle Speed | 0-18,000rpm | |||
Drive Motors | JMC stepper motor and driver | |||
Command Language | G Code | |||
Working Voltage | AC 220/380V | |||
Operation System | HD100 handle controller (DSP or Mach3 optional) | |||
Inverter | Best | |||
Software | Vectric Aspire/Type 3/Artcam/ Ucancam/JDPaint | |||
Computer Interface | Ethernet(or USB) |
Factory Direct Supply 1325 CNC Router Machine
for Acrylic
Factory Direct Supply 1325 CNC Router Machine
for Acrylic
Factory Direct Supply 1325 CNC Router Machine
for Acrylic
* Advertising industry:
Acrylic cutting, density board cutting, snowflake cutting, double color board carving, various advertising boards.
* Furniture industry:
Cabinet doors, wooden doors, solid wood, mahogany furniture, antique furniture, all kinds of composite sheet cutting carving.
* Plate processing industry:
Insulation board, plastic work piece, PCB board, anti-double board, epoxy resin, ABS, PP, PE and other carbon mixtures.
* Crafts industry:
Artificial marble, PVC, wood, plexiglass, copper aluminum and so on.
* Decoration industry:
The screen, wave plate, wood, artificial marble, organic board, decorative board, double color board and other.
Factory Direct Supply 1325 CNC Router Machine
for Acrylic
* Advertising industry:
Acrylic cutting, density board cutting, snowflake cutting, double color board carving, various advertising boards.
* Furniture industry:
Cabinet doors, wooden doors, solid wood, mahogany furniture, antique furniture, all kinds of composite sheet cutting carving.
* Plate processing industry:
Insulation board, plastic work piece, PCB board, anti-double board, epoxy resin, ABS, PP, PE and other carbon mixtures.
* Crafts industry:
Artificial marble, PVC, wood, plexiglass, copper aluminum and so on.
* Decoration industry:
The screen, wave plate, wood, artificial marble, organic board, decorative board, double color board and other.
Factory Direct Supply 1325 CNC Router Machine
for Acrylic
The SESAME CNC Router’s greatest advantage is machine lathe bed and legs could be split freely, accoding to customer’s request, can choose to disassemble the machine when shipping, which could save space and shipping cost. In such a severe international situation, harsh conditions such as difficulty in booking space and rising freight rates have severely hindered the transportation of goods and the normal operation and development of enterprises. SESAME’s disassembly advange would be a shining point in the near future.
The UTECH team has tested and implemented many loading and unloading solutions, such as 2/3 machines to pack a same wooden box;
A 20GP container to package 6 sets SESAME 1325,
A 40HQ container to package 20 sets SESAME 1325, etc.
Factory Direct Supply 1325 CNC Router Machine
for Acrylic
The SESAME CNC Router’s greatest advantage is machine lathe bed and legs could be split freely, accoding to customer’s request, can choose to disassemble the machine when shipping, which could save space and shipping cost. In such a severe international situation, harsh conditions such as difficulty in booking space and rising freight rates have severely hindered the transportation of goods and the normal operation and development of enterprises. SESAME’s disassembly advange would be a shining point in the near future.
The UTECH team has tested and implemented many loading and unloading solutions, such as 2/3 machines to pack a same wooden box;
A 20GP container to package 6 sets SESAME 1325,
A 40HQ container to package 20 sets SESAME 1325, etc.
