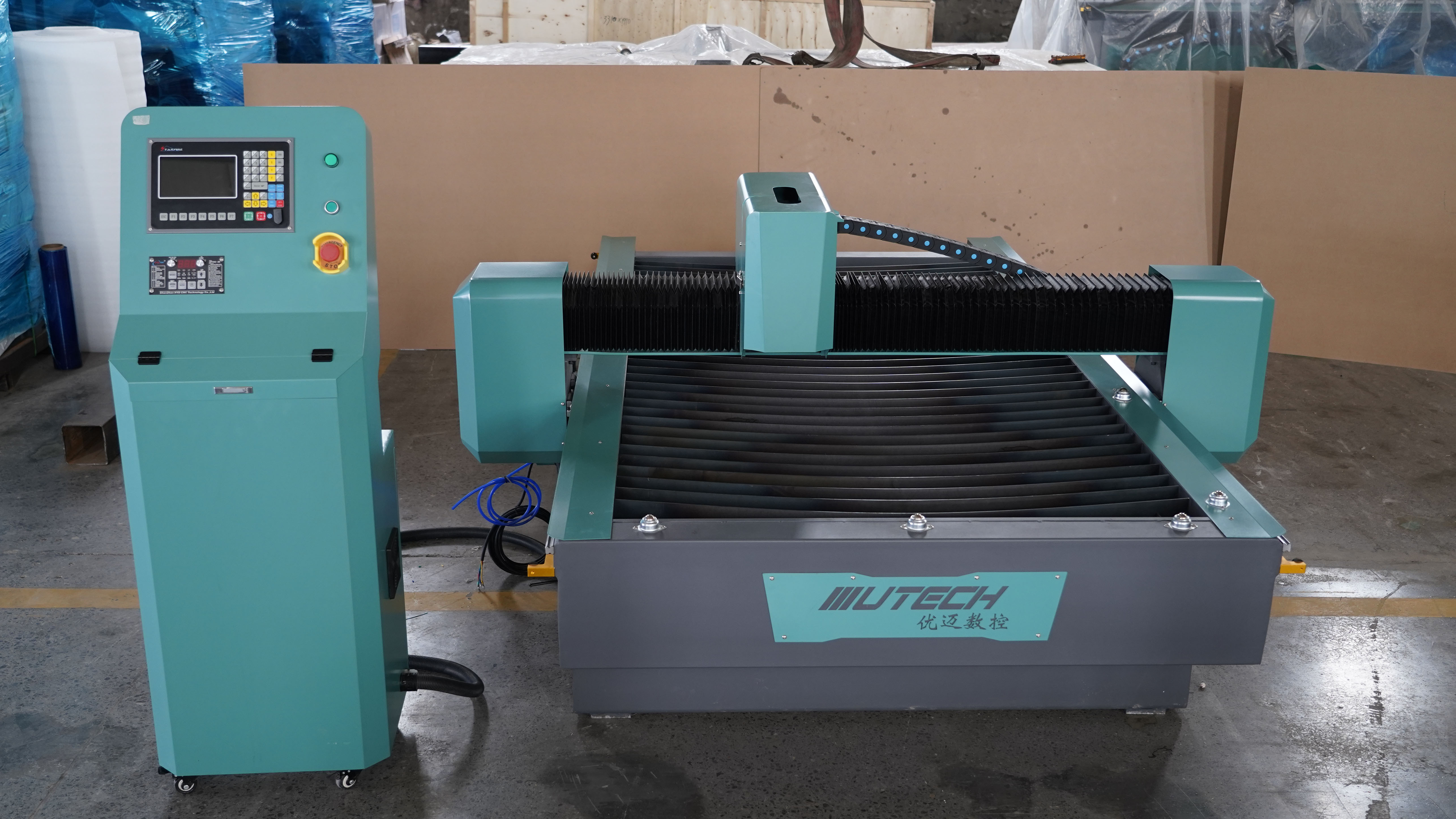

Heavy Plate Cnc Plasma Cutting Machine for Titanium Plate

In simplest terms, plasma cutting is a process that uses a high velocity jet of ionized gas that is delivered from a constricting orifice. The high velocity ionized gas, that is, the plasma, conducts electricity from the torch of the plasma cutter to the work piece. The plasma heats the workpiece, melting the material. The high velocity stream of ionized gas mechanically blows the molten metal away, severing the material.

Working Table Size:
Motor and driver:
Table:
Power Source:
Certification:
Availability:
Heavy Plate Cnc Plasma Cutting Machine for Titanium Plate
Heavy Plate Cnc Plasma Cutting Machine for Titanium Plate
Heavy Plate Cnc Plasma Cutting Machine for Titanium Plate
Heavy Plate Cnc Plasma Cutting Machine for Titanium Plate
Heavy Plate Cnc Plasma Cutting Machine for Titanium Plate
Heavy Plate Cnc Plasma Cutting Machine for Titanium Plate
  • SESAME P1

  • UTECH

Heavy Plate Cnc Plasma Cutting Machine for Titanium Plate

WHAT TO LOOK FOR WHEN PURCHASING A PLASMA CUTTING MACHINE

1. Test the machine and examine the cut quality

2. Determine the thickness of the metal that you will most frequently cut

3. Find out if the machine is easy to operate and feels comfortable

 等离子

Model

SESAME P1

Working size

1300mm*2500mm, 100mm stroke z-axis sliding table

Cutting speed

10-15m/min

Transmission system

1.25m rack, square 20 linear guide and slider

Operating System

Starfire SF2100/DSP A12 control system

Driver

JMC stepper motor and driver

Plasma power supply

Huayuan/Hypertherm

Cutting thickness

0-30mm

Cutting type

Plasma/oxy-acetylene or propane

Input voltage

3 phase,220v/380v±10%

Mode of file transfer

USB Interface

Water tank

Underlay stainless steel sink(absorb smoke and prevent burning)

Table-board

sawtooth + square pipe, spacing is 70 mm

Straight line positioning precision

±0.2mm/10m

Straight line repeat precision

±0.3mm/10m

Environmental temperature

-5~45°C

Humidity

<90% No concreting

 Features

1. Welded thick-walled steel structure, after special treatment, no distortion for the whole structure high precision, and long service life time.

2. Taiwan linear rail, ensure vertical section, more precision.

3. Suitable software: Artcam/ Fastcam/ Starfire etc.

4. Cutting system use Beijing Starfire system/ Start system/ FLMC-2300A or DSP system; Equipped with automatic height controller (THC controller), which can according to your material planeness, cutting head can automatically stable, and fast adjust.

5. FASTCAM is designed for all kinds of NC cutter with cutting software, the software can help the user completing various complex parts drawing, programming, material, using convenient, also bring the obvious economic benefit.

6. FASTCAM programming software based on AutoCAD automatic programming and material system.

7. If you cut thick material, according to actual use, we’ll add water tank for you for free, to absorbs a large amount of smoke generated during cutting.
8. Machine could be customized, whatever specifications, appearance, etc. Any request you’ve, could tell us directly.







Brand



Power

Recommended cutting thickness for carbon steel

Recommended cutting thickness for stainless steel



UTECH High production cnc steel plasma cutting machine air plasma cutter

LGK 63A

10mm

5mm

LGK 100A

12mm

6mm

LGK 120A

15mm

8mm

LGK 160A

20mm

10mm

LGK 200A

25mm

15mm





UTECH High production cnc steel plasma cutting machine air plasma cutter



Powermax 45A

8mm

3mm

Powermax 65A

12mm

5mm

Powermax 85A

15mm

6mm

Powermax 105A

18mm

10mm

Powermax 125A

25mm

16mm


官网等离子配件长图官网等离子配件长图

Packing:

1/ If machine delivery via LCL, then would packed with wrapping film, EPE foam, and standard export plywood box.

2/ If machine delivery via FCL, then dont need wood box, would packed with warpping film and EPE foam.

Shipping:

We support machine delivery via express, air transportation, land transportation and sea transportation.

1/ Such as some small machine, Mini CNC Router or Small CO2 Laser Machine and Fiber Laser Marking Machine, usually delivery via express and air transportation.

2/ If you wanna us help you delivery to domestic warehouse or Russia, Kazakhstan etc, usually delivery via land transportation.

3/ Large machine or some countries where shipping is more convenient, usually suggest choose sea transportation.

You can choose any way you'd prefer, we also will give you some proper suggestions.

官网等离子运输

Application Materials: Stainless steel, mild steel, brass, copper, aluminum alloy, sheet metal, spring steel, gold, silver, etc

Application Industry: Sheet metal, kitchenware, components, decorations industry
