| Core Components: | |
|---|---|
| Working Table: | |
| Software support: | |
| Laser control system: | |
| Linear Guide: | |
CO2
UTECH
CO2

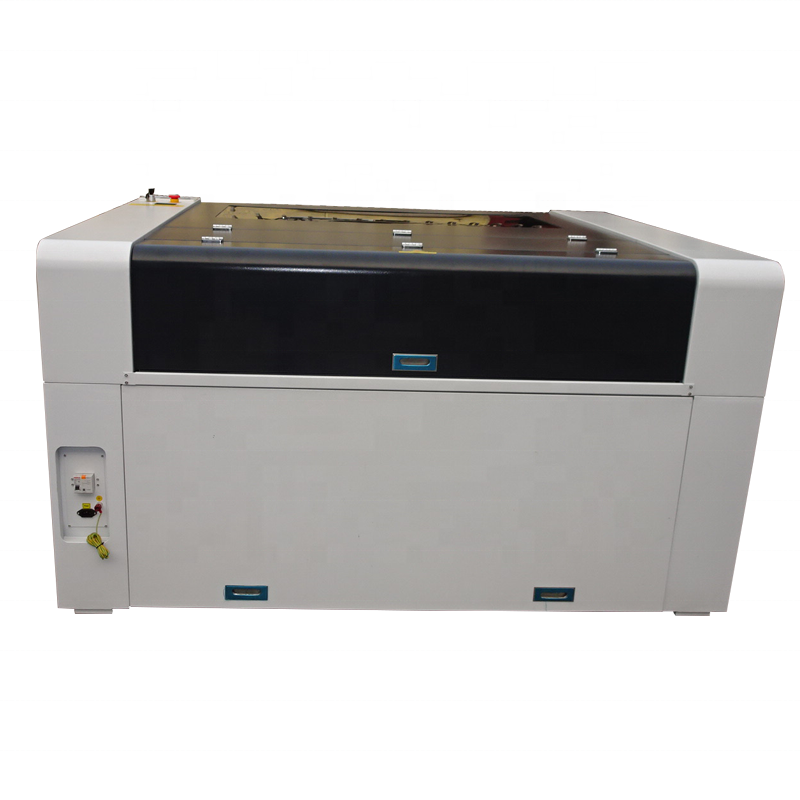

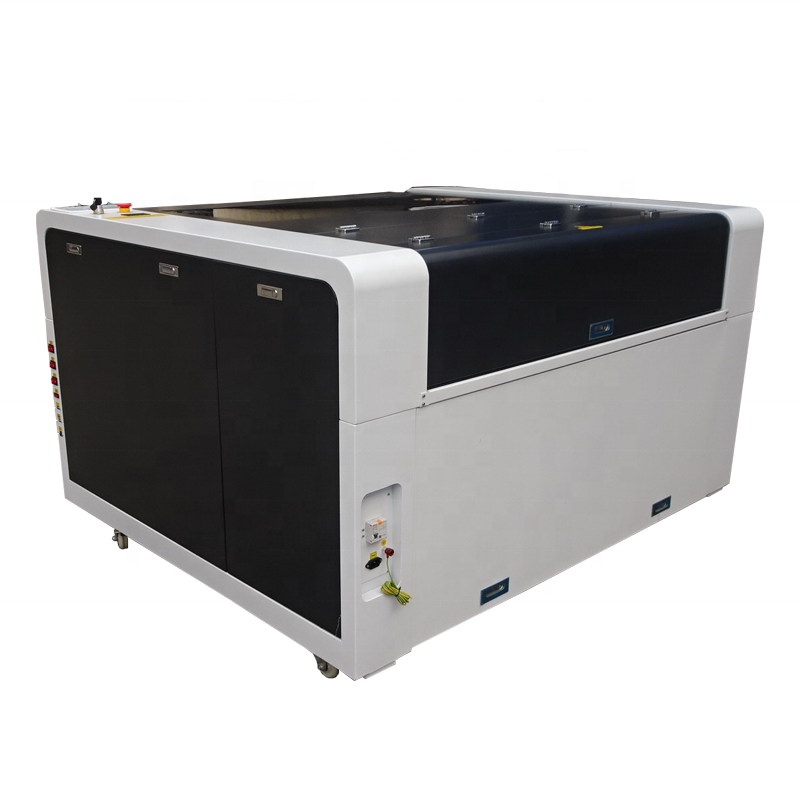

Description:
The device uses domestic CO2 glass tube laser source, it can cut and engrave the surface of non-metallic materials with Chinese & English words, numbers, trademarks and other vector graphics, serial number, batch number, specifications and other product labelings etc.
CO2 laser Engraving / Cutting machine use the international advanced DSP control technology, creating a continuous industry-leading, Fast curve cutting and shortest machining path optimization, greatly improving work efficiency. For engraving the entire automatic light failure compensation to ensure consistent cutting results in different regions, fast cutting software design and high-speed sports buffer function, but also can improve production efficiency, in line with the user's site design requirements.
It is widely used in wood products, paper, leather, fabrics, Plexiglas, epoxy resin, acrylic, wool, plastic, rubber, ceramic tiles, crystal, bamboo products and other non-metallic materials engraving and cutting.CO2 laser engraving machine / cutting machine is consist of the laser source, light guide system, cutting head, control system, machine tool unit and exhaust dust system.
✦Equipment with automatic / manual modulation focused laser head, responsive andaccurate to ensure sculpture quality.
✦ The advantage of laser processing is that various patterns can be carved and hollowed out on the surface of various materials quickly. Because laser processing is a non-contact processing method, it will not produce any external deformation on the materials.
Details:
| Model | 1390 Laser engraving machine | |
| Working area | 1300*900mm (Can tailor-made for you) | |
| Laser power | Reci 80w/100w/130w/150w | |
| Laser tube type | Sealed CO2 glass laser tube | |
| laser tube cooling type | S&A Industrial Water Chiller | |
| Cutting speed | 0-24000mm/min | |
| Repositioning accuracy | <0.01mm | |
| Working voltage | AC110v/220v 50Hz/60Hz | |
| Consuming power | <1000w | |
| Laser control system | RDC6442S control system | |
| Driving system | YAKO stepper motor YKD3505M-DK-B1 and driver YK368-826G | |
| Working table | Blade table ( Alternative Honeycomb table ) | |
| Linear guide | ABBA square rail (sub-brand of SKF) | |
| Minimum letter size | English:1mm x1mm; Chinese: 2mm x 2mm | |
Applications:
✦Mainly used for large blister word cutting, two-color plate engraving, PMMA Plexiglas engraving and cutting,nameplate & crystal & trophy & other authorized cards engraving and cutting.
✦Handicraft industry: to carve various pattern and words in wood, bamboo, ivory, bones, leather, marble, shells etc.
✦ Leather garment processing industry: for real leather, synthetic leather, artificial leather, fabrics, fur complex text graphics carving, cutting, hollowing process. Like in clothes, apparel, underwear, furniture, gloves, handbags, shoes and hats, toys and car flower industries. To make them beyond fashion, outstanding .
✦The model industry: to produce sand table construction model and aircraft model, ABS board cutting, multi-layer cutting.
✦Packaging industry: To carve printing rubber plate, plastic plate, double-decker, knife-cutting board.
✦Product marking industry: for equipment nameplate, product anti-counterfate marking etc.
✦ Other industries: marble, granite, glass, crystal and other decorative materials engraving and marking, paper and greeting cards and other paper craft cutting process.
Description:
The device uses domestic CO2 glass tube laser source, it can cut and engrave the surface of non-metallic materials with Chinese & English words, numbers, trademarks and other vector graphics, serial number, batch number, specifications and other product labelings etc.
CO2 laser Engraving / Cutting machine use the international advanced DSP control technology, creating a continuous industry-leading, Fast curve cutting and shortest machining path optimization, greatly improving work efficiency. For engraving the entire automatic light failure compensation to ensure consistent cutting results in different regions, fast cutting software design and high-speed sports buffer function, but also can improve production efficiency, in line with the user's site design requirements.
It is widely used in wood products, paper, leather, fabrics, Plexiglas, epoxy resin, acrylic, wool, plastic, rubber, ceramic tiles, crystal, bamboo products and other non-metallic materials engraving and cutting.CO2 laser engraving machine / cutting machine is consist of the laser source, light guide system, cutting head, control system, machine tool unit and exhaust dust system.
✦Equipment with automatic / manual modulation focused laser head, responsive andaccurate to ensure sculpture quality.
✦ The advantage of laser processing is that various patterns can be carved and hollowed out on the surface of various materials quickly. Because laser processing is a non-contact processing method, it will not produce any external deformation on the materials.
Details:
| Model | 1390 Laser engraving machine | |
| Working area | 1300*900mm (Can tailor-made for you) | |
| Laser power | Reci 80w/100w/130w/150w | |
| Laser tube type | Sealed CO2 glass laser tube | |
| laser tube cooling type | S&A Industrial Water Chiller | |
| Cutting speed | 0-24000mm/min | |
| Repositioning accuracy | <0.01mm | |
| Working voltage | AC110v/220v 50Hz/60Hz | |
| Consuming power | <1000w | |
| Laser control system | RDC6442S control system | |
| Driving system | YAKO stepper motor YKD3505M-DK-B1 and driver YK368-826G | |
| Working table | Blade table ( Alternative Honeycomb table ) | |
| Linear guide | ABBA square rail (sub-brand of SKF) | |
| Minimum letter size | English:1mm x1mm; Chinese: 2mm x 2mm | |
Applications:
✦Mainly used for large blister word cutting, two-color plate engraving, PMMA Plexiglas engraving and cutting,nameplate & crystal & trophy & other authorized cards engraving and cutting.
✦Handicraft industry: to carve various pattern and words in wood, bamboo, ivory, bones, leather, marble, shells etc.
✦ Leather garment processing industry: for real leather, synthetic leather, artificial leather, fabrics, fur complex text graphics carving, cutting, hollowing process. Like in clothes, apparel, underwear, furniture, gloves, handbags, shoes and hats, toys and car flower industries. To make them beyond fashion, outstanding .
✦The model industry: to produce sand table construction model and aircraft model, ABS board cutting, multi-layer cutting.
✦Packaging industry: To carve printing rubber plate, plastic plate, double-decker, knife-cutting board.
✦Product marking industry: for equipment nameplate, product anti-counterfate marking etc.
✦ Other industries: marble, granite, glass, crystal and other decorative materials engraving and marking, paper and greeting cards and other paper craft cutting process.
