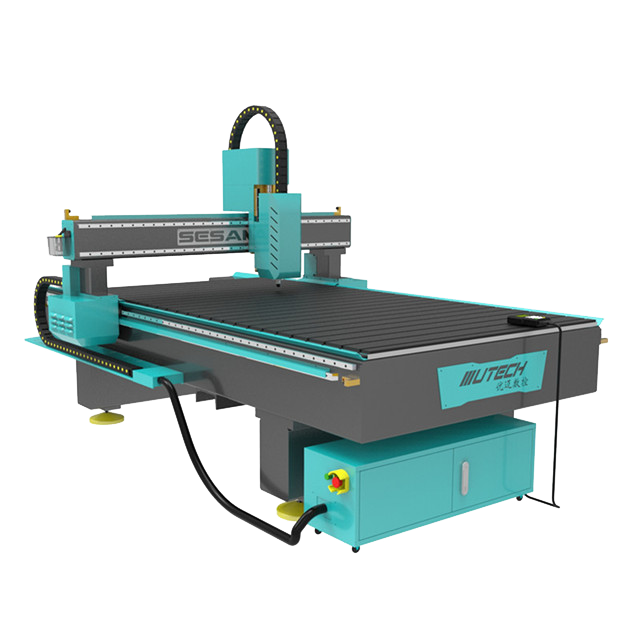

Characteristics

Patent separable structure

SESAME series have distinctive designs for the international market, highly visual impact. We have already owned the patent of appearance design and another multiple from China.

Save the shipping costs.
Very convenient for loading and unloading goods.
The whole machine assembly process is upgraded.

Machine legs and machine body could be separated freely, could save some space and shipping freight, before package, the customer could choose to dismantle or not, also easy to install, if dismantle, we'll take video for showing how to dismantle and assemble.

A 20GP container could pack 6 sets of SESAME 1325.

A 40GP container could pack 14 sets of SESAME 1325.

小芝麻3台打包图 (2) 小芝麻3台打包图 (4)

1 (6)

Parameter list

Descriptions	Parameters
Model	SESAME S2 1325	SESAME S2 1530	SESAME S2 2030	SESAME S2 2040
Working area	1300*2500mm	1500*3000mm	2000*3000mm	2000*4000mm
Accuracy	±0.05mm
Table Surface	T-slot table (vacuum table is optional)
Frame	Square pipe welding bed structure 200300mm+150200mmgantry
X, Y Structure	1.25M Gear and rack transmission, Taiwan Linear Rail
Z Structure	Taiwan TBI Ball Screw, Taiwan Linear Rail
Spindle Power	4.5kw air cooled spindle+ER25 cutter
Spindle Speed	0-24000RPM
Drive Motors	JMC stepper motor and driver
Working Voltage	AC 220/380V
Command Language	G Code
Operating System	HD100 handle controller (DSP or Mach3 optional)
Computer Interface	Ethernet (or USB)
Inverter	Best
Software	Vectric Aspire/Type 3 /Artcam /Ucancam/JDPaint

S2-1

SESAME Cnc Router's standard parts:

1. Leg Removable Frame

2. 4.5kw air cooled spindle+ER25 cutter, cutting thick materials, also is easy (optional)

3. Machine Base Frame

4. Anodized Aluminum Spindle Fixing plate (Z axis)

5. Dust cover for the guide rail and the helical rack gear

6. TBI High-Precision Ball-screw Transmission (Taiwan)

7. Patent design 1:4 gear reducer + Stepper 450B driving motor

8. Hiwin/PMI square rail& High quality helical rack pinion

9. CNC Tool Sensor

SESAME Cnc Router's optional parts:

1. Mach3/4/DSP controller

2. Rotary(length&diameter could be customized)

3. Automatic lubricator

4. Dust collector

5. Oil mist lubrication pump

6. T-slot table

1. Machine bed

Machine bed with 200 * 300mm square tube welded together, compared to ordinary machines, we use the square tube model can better reflect the stability of the equipment.

2. Reserved Position for Forklift

The bed welding process increases the reserved forklift, highlights two major advantages: First, increase the strength of the bed itself; Second, it`s more convenient for customers to load or unload the equipment.

3. Transmission stand column

Transmission stand column, we adopt a high precision machining process, ensure the accuracy of accessories. Like, insert cavity position, assembly surface.

4. SESAME machine head

First, For the choice of the handpiece, we choose T6061/6063 aviation aluminum alloy as the base material. Through the precision processing of the CNC Processing Center, we finished our finished parts. Second, the high requirement assembly process ensures the precision of the product.

5. Unpacking saves transportation costs+Patent design transmission structure.

6. Optimize the design structure to facilitate the customer fork handling equipment, reserved for forklift special seats.

7. SESEMA adopts a portable optimized design small separate control cabinet.

优势 (2)

FAQ13

4.5 air-cooled spindle with ER32 collect

The High-quality SESAME series CNC Router machine comes with a 4.5 air-cooled high-frequency spindle.

TBI High-Precision Ball-screw Transmission

Use rigorous materials, high heat treatment, and processing technology to supply durable products.

Taiwan square rail & High-quality helical rack pinion Patent design 1:4 gear reducer

Runs smoothly, at high speed, high precision, and low noise.

Column

Transmission column, we adopt high - precision machining process, ensure the accuracy of accessories. Like insert cavity position, assembly surface

Machine structure

Machine bed with 200 * 300mm square tube welded together, compared to ordinary machines, we use the square tube model can better reflect the stability of the equipment.

Tool Sensor

Tool Sensor allows for easy and accurate "Z" zero position for single and multiple tools changes through the program.

1. Advertising industry
Acrylic cutting, density board cutting, snowflake cutting, double color board carving, various advertising boards.

2. Furniture industry

Cabinet doors, wooden doors, solid wood, mahogany furniture, antique furniture, all kinds of composite sheet cutting carving.

3. Plate processing industry
Insulation board, plastic work piece, PCB board, anti-double board, epoxy resin, ABS, PP, PE and other carbon mixtures.

4. Crafts industry
Artificial marble, PVC, wood, plexiglass, copper aluminum and so on

Our Service：

1. Whole machine with one year warranty, within one year, if there has parts broken, you can send back to us, then we'll send a new one to you.

2. Free training course at our plant or on line.

3. After the warranty period, we'll provide the consumable parts at an agency price when you need replacement.

4. 24 hours on line service each day, free technical support.

5. Before machine delivery, we'll install all parts and test machine for you. We'll take machine's working video and machine photos for you for checking, if confirmed there're no problem, then we'll delivery machine. And if dont dismantle the gantry (if working area more than 1325, then need dismantle machine gantry for putting it into container), after machine arrived, you just need connect plasma power supply, software etc, it's more easily for you. If you're worried, we can take a teaching video for you at that time. By the way, during the production of machine, we also can share the process with you.

6. As for training, firstly we'll take more teaching video for you, and we also can remote control, most important, if you need, we can provide our technicians for on-site training and on-site teaching. And if you wanna, welcome to visit us, you can operate and learn your machine by yourself.

7. After machine shipped, I'll prepare some documents, like B/L, Packing List, Commerical Invoice, Commerical Contract, CE certificate for helping you pick up your machine. S2-1

S2英语

Size:	13002500 15003000 20003000 20004000 Other Size
Spindle Motor:	3.0/4.5/6/7KW water cooling spindle/air cooling spindle
XYZ Transmission:	Z-Taiwan TBI Ball Screw; X,Y-Gear transmission
Drive&Motor:	Stepper motor and driver
X,Y,Z Guide Rail:	Taiwan HIWIN Guide Rail
Availability:



Inquire Add to Basket
