SESAME Series CNC work is suitable for the acrylic organic board, PVC board, hibiscus board, double color board, wood board, density board, marble, fire board, rubber board, glass, crystal, etc.
| Structure: | |
|---|---|
| Cutting Area: | |
| Working Table: | |
| Spindle: | |
| Transmission: | |

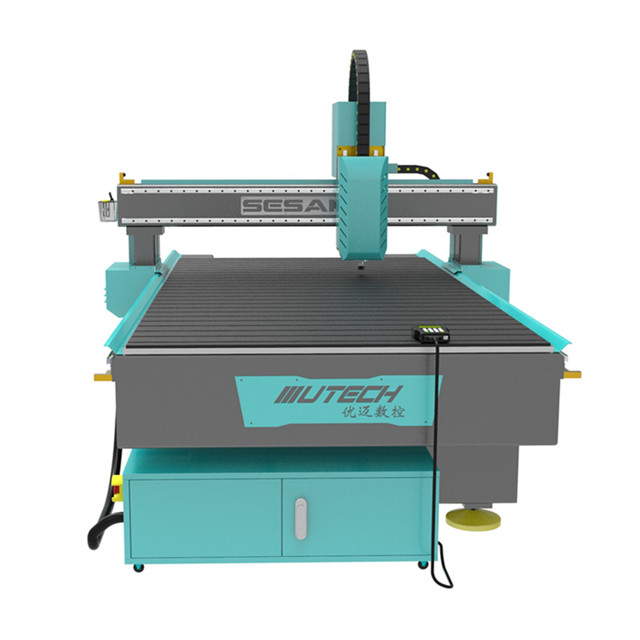

SESAME UT-1325
UTECH
All Various SESAME CNC CUTTING&ENGRAVING MACHINE
Professional CNC engraving machine solution, customize any router of different configurations.
Table changing...
Working area changing...
Spindle changing...
Component changing...
Whatever you want, UTECH will meet your request.
Machine body and machine legs could be separated freely, and disassembly and delivery can save shipping costs;
Forklift loading and unloading reserved position, which can better protect machine body and cargo's carrying capacity;
The whole machine is equipped with a patent type 1:4 reducer, which can ensure high speed and no loss of the pulse signal during the machining process;
Compatible with multiple software: TYpe3/ArtCAM/Casemate/CAXA/Artcut etc.,

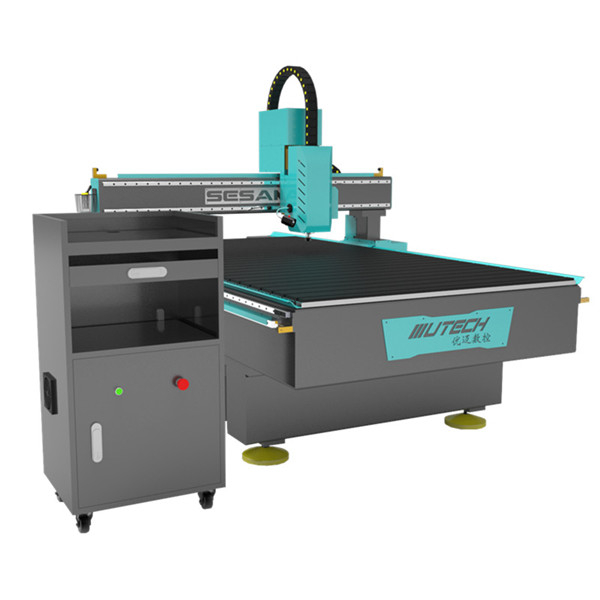

The design of the front control box makes the whole machine compact and beautiful, and the control box will not occupy additional space. In addition, there are 4 wheels under the electric box, which are convenient for free movement and easy operation;
PVC anti-collision table protects the table when the spindle is working;
An aluminum profile t-slot working table, combined with UTECH's patented plate clamp device, can fix different size plates, and the material is convenient and stable to fix.
Adopt a heavy-duty lathe bed, square pipe welded, side hanging structure, heavy column,150*200mm gantry, ensuring the overall operation stability of the equipment.
The transmission model adopts a precision reducer match with a brand gear rack, large torque, low noise, and high transmission precision accuracy.
Single system control, eliminating the switching system of the second boot, save time and effort.
Tracing-edge cutting for different materials, KT board, PVC, and photo paper to achieve no burr cutting.
Equipped with a professional 1.5-megapixel industrial camera, powerful image recognition, and more accurate cutting.
The machine supports DXF, JPG, PNG, NC, and other formats, not only with the automatic tracing edge but also supports the function of the CNC router.
√ Adopt a heavy-duty lathe bed, square pipe welded, side hanging structure, heavy column, 150*200mm gantry, ensure the overall operation stability of the equipment.
√ The transmission model adopts a precision reducer match with a brand gear rack, large torque, low noise, and high transmission precision accuracy.
√The 4th rotary axis design realizes the 3D processing of arc, cylindrical, circular, and other materials. we should enrich the machine and increase the demand for 3D processing to meet the requirements of more customers.
√ Machine with the professional 4-axis control system.
Heavy-duty thickened bed made from welded 200*300mm square tube.
Side hanging structure.
Heavy-duty mechanical tool column.
150*200mm gantry.
Industrial quality linear bearings.
Patent type reducer structure.
4.5kw air cooled spindle+ER25 collect.
HD100 handle controller, is easy operation.
The repeat positioning accuracy is ±0.01mm.
The accuracy of returning to the machine origin is ±0.02mm.
Aluminum alloy T-shaped table+Vacuum adsorption table.
Split structure of machine legs and lathe bed.
Industrial dust removal system.
SESAME Series CNC work is suitable for the acrylic organic board, PVC board, hibiscus board, double color board, wood board, density board, marble, fire board, rubber board, glass, crystal, etc.
