S2-1325
UTECH
Widely Used 1500mm*3000mm CNC Router Machine for Advertising
The SESAME CNC Router’s greatest advantage is machine lathe bed and legs could be split freely, accoding to customer’s request, can choose to disassemble the machine when shipping, which could save space and shipping cost. In such a severe international
situation, harsh conditions such as difficulty in booking space and rising freight rates have severely hindered the transportation of goods and the normal operation and development of enterprises. SESAME’s disassembly advange would be a shining point in the near future.
The UTECH team has tested and implemented many loading and unloading solutions, such as 2/3 machines to pack a same wooden box; a 20GP container to package 6 sets SESAME 1325, a 40HQ container to package 20 sets SESAME 1325, etc.
Parameters
| Descriptions | Parameters | |||
| Model | SESAME S2 1325 | SESAME S2 1530 | SESAME S2 2030 | SESAME S2 2040 |
| Working Area | 1300*2500mm | 1500*3000mm | 2000*3000mm | 2000*4000mm |
| X,Y Structure | 1.25M Gear and rack transmission, Taiwan Linear Rail | |||
| Z Structure | Taiwan TBI Ball Screw, Taiwan Linear Rail | |||
| Table surface | T-slot table(vacuum table is optional) | |||
| Frame | Square pipe welding bed structure 200*300mm+150*200mm gantry | |||
| Accuracy | 0.05mm | |||
| Repeat Position Accuracy | 0.01mm | |||
| Spindle Power | 4.5kw air cooled spindle+ER25 cutter | |||
| Spindle Speed | 0-18,000rpm | |||
| Drive Motors | JMC stepper motor and driver | |||
| Command Language | G Code | |||
| Working Voltage | AC 220/380V | |||
| Operation System | HD100 handle controller (DSP or Mach3 optional) | |||
| Inverter | Best | |||
| Software | Vectric Aspire/Type 3/Artcam/ Ucancam/JDPaint | |||
| Computer Interface | Ethernet(or USB) | |||
Machine Detail
The aluminum alloy T-shaped table is equipped with a patented clamping fixture, which is convenient for customers to disassemble and assemble materials. Optional vacuum adsorption table. If choose vacuum adsorption table, will be matched with T-slot table together. The adsorption table is made of A-grade hard PVC board to prevent deformation.
The machine is equipped with a reducer structure, compared with the characteristics of the looseness, short life, and insignificant deceleration effect of the gearbox and timing belt, the reducer has the advantages of low backlash, low noise, high strength, and accurate deceleration effect.
This ensures the table holds a strong suction and tight tolerances for precision cutting. The machine also can be equipped with a pneumatic roller. This attachment will effectively prevent materials from moving during the cut. For machining thin or small sheet materials that are not easily vacuumed.
Application
* Advertising industry：
Acrylic cutting, density board cutting, snowflake cutting, double color board carving, various advertising boards.
* Furniture industry：
Cabinet doors, wooden doors, solid wood, mahogany furniture, antique furniture, all kinds of composite sheet cutting carving.
* Plate processing industry:
Insulation board, plastic work piece, PCB board, anti-double board, epoxy resin, ABS, PP, PE and other carbon mixtures.
* Crafts industry:
Artificial marble, PVC, wood, plexiglass, copper aluminum and so on.
* Decoration industry:
The screen, wave plate, wood, artificial marble, organic board, decorative board, double color board and other.
Package and Shipping
SESAME series CNC Router have distinctive designs for international market, highly visual impact. We have already owned the patent of appearance design and other multiple from China.
Save the shipping costs.
Very convenient for loading and unloading goods.
The whole machine assemply process is upgraded.
Machine legs and body can separate freely,which could save some space and shipping freight. Before package, customer could choose dismantle or not, also easy to install. If dismantle, we'll take video for showing how to diamantle and assemble.
A 20 GP container could pack 6 sets SESAME 1325
A 40 HQ container could pack 20 sets SESAME 1325

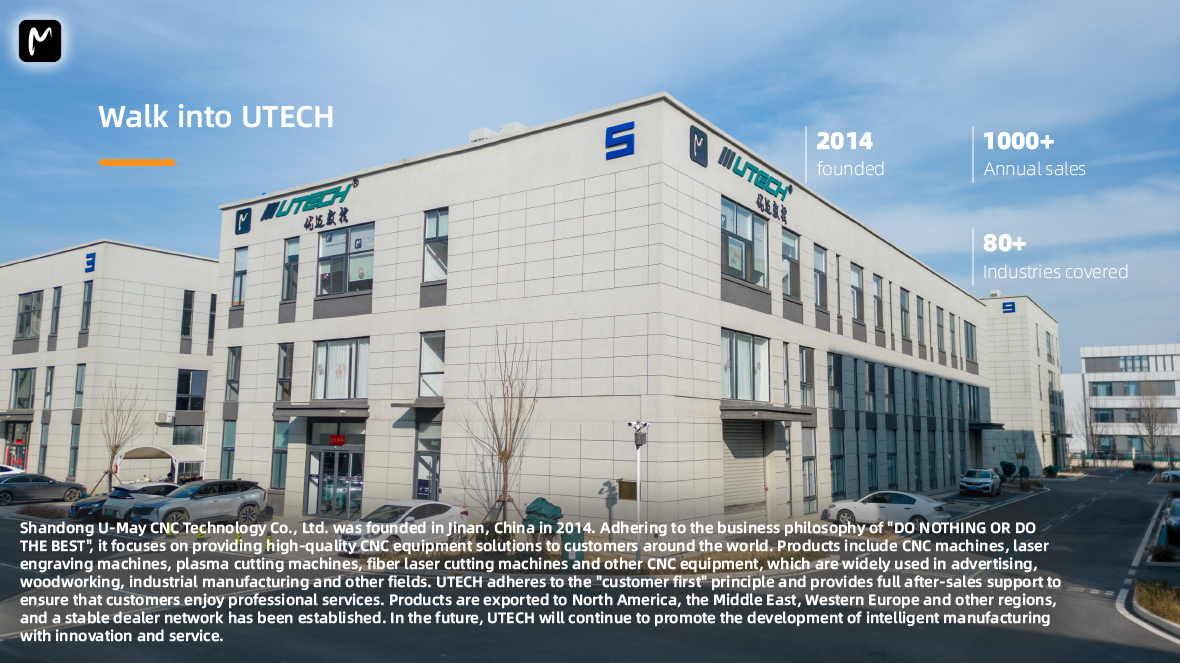

Company Profile
"///UTECH" is the new logo brand after the transformation of "Shandong U-May CNC Technology Co., Ltd.". "///" aims to record the important strategic transformation of the company from ordinary business innovation to high-quality operation in the three years after its establishment; "U" is "U-May"'s homophonic characters; "TECH" means the CNC technology. At the same time, when the company was founded three years, the establishment of the Ministry of Foreign Trade, so "///UTECH" became the company's new logo, and the company's development philosophy "Smarter Solution, Better Tomorrow."
