Control system: | |
---|---|
Plasma power: | |
Worktable: | |
Drive motor: | |
Cutting material: | |
Availability: | |

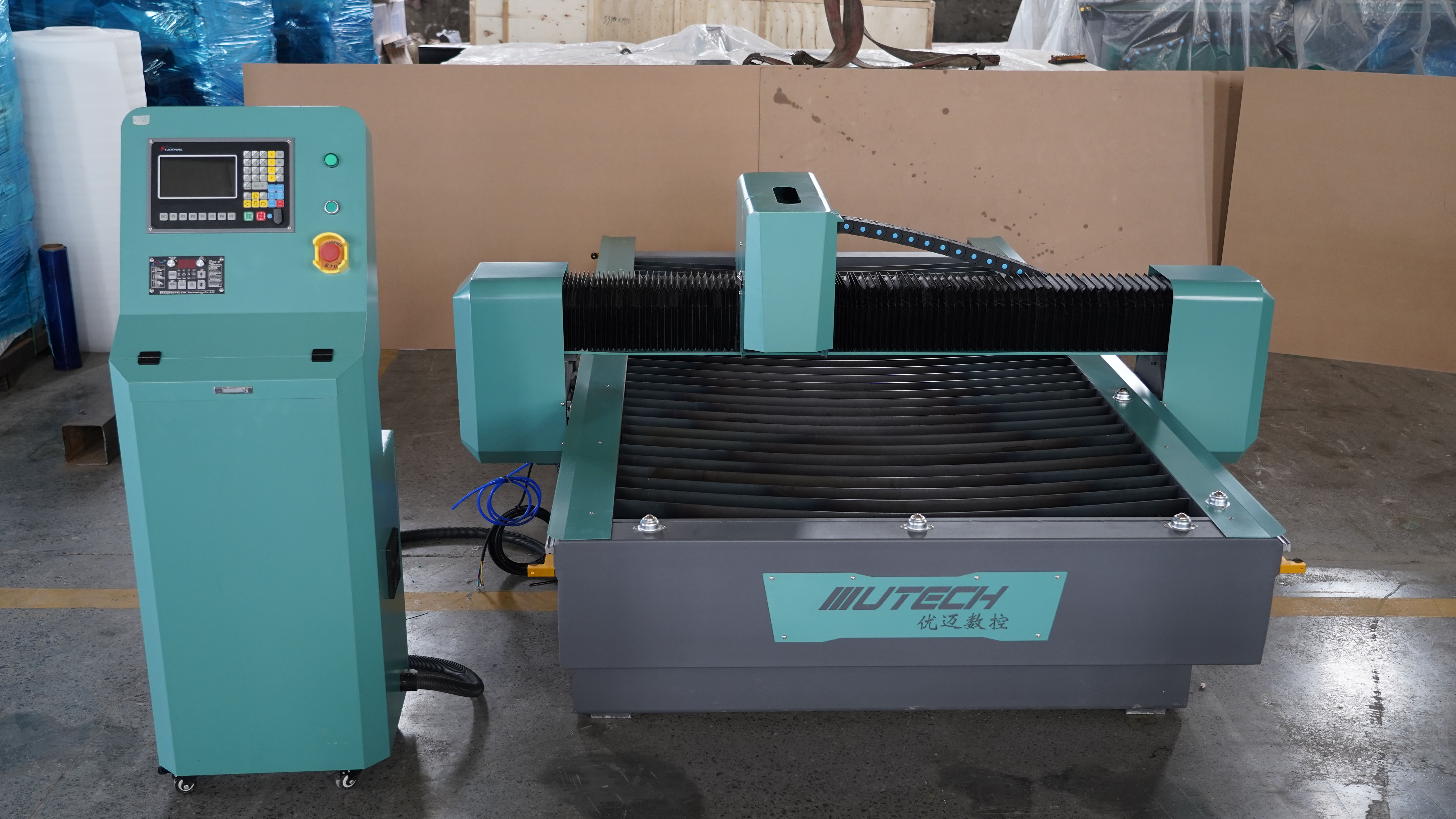

UT-1325
UTECH
20211325
Cutting faster, more accurate control, the cutting surface is more smooth, no glitches, no black; cutting holes in high quality
Stability and reliability for light path system and control system
Humanizing design, convenient operation
High-performance price ratio, low operating cost >High cutting efficiency, and quality, no noisy. Small heat influence area, cutting seam smooth and no deformation, post-treatment is not needed
The machine adopts Beijing START plasma control system, standard high sensitivity arc voltage device
High precision stepper motor and driver, ensure the efficiency and accuracy, increasing the stability and reliability greatly
MACHINE PARAMTER | |
Processing area | 1300*2500mm |
Working thickness | 30mm |
Z axis feeding height | 180mm |
Working material | Iron, aluminum, titanium, stainless steel and others |
Running speed | 0-15000mm/min |
Cutting speed | 0-10000mm/min |
Power | 10.5KW |
Input voltage | 380V/220V/110V |
Power supply frequency | 50HZ/60HZ |
Plasma power supply | 100A |
File transfer mode | USB interface |
Working method | Non contact arc |
Driving mode | Gear driving |
Mode of motion | Gantry driving |
X axis motor and drive | JMC Stepper motor and drive |
Overall dimension | 2200*3300mm |
Ventilation system install mouth | Double ventilation mouths |
Weight | 1000kg |
Cooling System | DSP A12S or STARFIRE |
Guide rail | Taiwan PMI linear square rail |
Plasma generator(power) | Huayuan or Hypertherm plasma(USA) |
Plasma cutting gun | huayuan or Hypertherm plasma cutting gun |
Floating cutting gun mode of motion | Automatic and Pneumatic test |
System | Beijing Start controlling system |
Floating adjustable block | Beijing Start Floating adjustable block |
Body configuration | Steel |
Table configuration | Steel table frame iron lattice |
Material fixed mode | Electrode plate |
processing cutting instruction | EMG, G-code, U00, MMG, NC |
Machine positioning | ±0.15/300mm |
Cutting faster, more accurate control, the cutting surface is more smooth, no glitches, no black; cutting holes in high quality
Stability and reliability for light path system and control system
Humanizing design, convenient operation
High-performance price ratio, low operating cost >High cutting efficiency, and quality, no noisy. Small heat influence area, cutting seam smooth and no deformation, post-treatment is not needed
The machine adopts Beijing START plasma control system, standard high sensitivity arc voltage device
High precision stepper motor and driver, ensure the efficiency and accuracy, increasing the stability and reliability greatly
MACHINE PARAMTER | |
Processing area | 1300*2500mm |
Working thickness | 30mm |
Z axis feeding height | 180mm |
Working material | Iron, aluminum, titanium, stainless steel and others |
Running speed | 0-15000mm/min |
Cutting speed | 0-10000mm/min |
Power | 10.5KW |
Input voltage | 380V/220V/110V |
Power supply frequency | 50HZ/60HZ |
Plasma power supply | 100A |
File transfer mode | USB interface |
Working method | Non contact arc |
Driving mode | Gear driving |
Mode of motion | Gantry driving |
X axis motor and drive | JMC Stepper motor and drive |
Overall dimension | 2200*3300mm |
Ventilation system install mouth | Double ventilation mouths |
Weight | 1000kg |
Cooling System | DSP A12S or STARFIRE |
Guide rail | Taiwan PMI linear square rail |
Plasma generator(power) | Huayuan or Hypertherm plasma(USA) |
Plasma cutting gun | huayuan or Hypertherm plasma cutting gun |
Floating cutting gun mode of motion | Automatic and Pneumatic test |
System | Beijing Start controlling system |
Floating adjustable block | Beijing Start Floating adjustable block |
Body configuration | Steel |
Table configuration | Steel table frame iron lattice |
Material fixed mode | Electrode plate |
processing cutting instruction | EMG, G-code, U00, MMG, NC |
Machine positioning | ±0.15/300mm |
Packing:
1/ If machine delivery via LCL, then would packed with wrapping film, EPE foam, and standard export plywood box.
2/ If machine delivery via FCL, then dont need wood box, would packed with warpping film and EPE foam.
Shipping:
We support machine delivery via express, air transportation, land transportation and sea transportation.
1/ Such as some small machine, Mini CNC Router or Small CO2 Laser Machine and Fiber Laser Marking Machine, usually delivery via
express and air transportation.
2/ If you wanna us help you delivery to domestic warehouse or Russia, Kazakhstan etc, usually delivery via land transportation.
3/ Large machine or some countries where shipping is more convenient, usually suggest choose sea transportation.
You can choose any way you'd prefer, we also will give you some proper suggestions.
Packing:
1/ If machine delivery via LCL, then would packed with wrapping film, EPE foam, and standard export plywood box.
2/ If machine delivery via FCL, then dont need wood box, would packed with warpping film and EPE foam.
Shipping:
We support machine delivery via express, air transportation, land transportation and sea transportation.
1/ Such as some small machine, Mini CNC Router or Small CO2 Laser Machine and Fiber Laser Marking Machine, usually delivery via
express and air transportation.
2/ If you wanna us help you delivery to domestic warehouse or Russia, Kazakhstan etc, usually delivery via land transportation.
3/ Large machine or some countries where shipping is more convenient, usually suggest choose sea transportation.
You can choose any way you'd prefer, we also will give you some proper suggestions.
Q1. How do you get the best price? As you may know, the different type of CNC machine apply to the different material, and the different model apply to the different material. Please tell me what's material you want to cutting or engraving? And what's MAX size and thickness of carved material? Then I will recommand the most suitable model and the best price for you.
Q2: How long is the delivery time?
For standard machines, it would be 15-20 days, if small machine, such as our mini cnc 3020, 3040, 4060, within
one week; For non-standard machines and customized machines according to clients specific requirements, it would be 20 to 30 days.
Q3: In case of failure, how to do?
Call us----our enginners are online for 24-hours,and ready to serve you. Replacement of damaged parts for free---For more information,please contact us The CD and operation manual----It show the most common failure in working processing and how to solve this problems.
Q4: How is the packing?
1) For CNC engraving machine: Machine would packed with wrapping film, EPE foam, and standard export plywood box. 2) For fiber laser cutting machine: Machine body covered with plastic film, laser source, control cabinet packed with plywood case and put on the machine body, chiller packed with plywood alone, usually fiber laser cutting machine packed with a whole 20GP container.
Q1. How do you get the best price? As you may know, the different type of CNC machine apply to the different material, and the different model apply to the different material. Please tell me what's material you want to cutting or engraving? And what's MAX size and thickness of carved material? Then I will recommand the most suitable model and the best price for you.
Q2: How long is the delivery time?
For standard machines, it would be 15-20 days, if small machine, such as our mini cnc 3020, 3040, 4060, within
one week; For non-standard machines and customized machines according to clients specific requirements, it would be 20 to 30 days.
Q3: In case of failure, how to do?
Call us----our enginners are online for 24-hours,and ready to serve you. Replacement of damaged parts for free---For more information,please contact us The CD and operation manual----It show the most common failure in working processing and how to solve this problems.
Q4: How is the packing?
1) For CNC engraving machine: Machine would packed with wrapping film, EPE foam, and standard export plywood box. 2) For fiber laser cutting machine: Machine body covered with plastic film, laser source, control cabinet packed with plywood case and put on the machine body, chiller packed with plywood alone, usually fiber laser cutting machine packed with a whole 20GP container.
