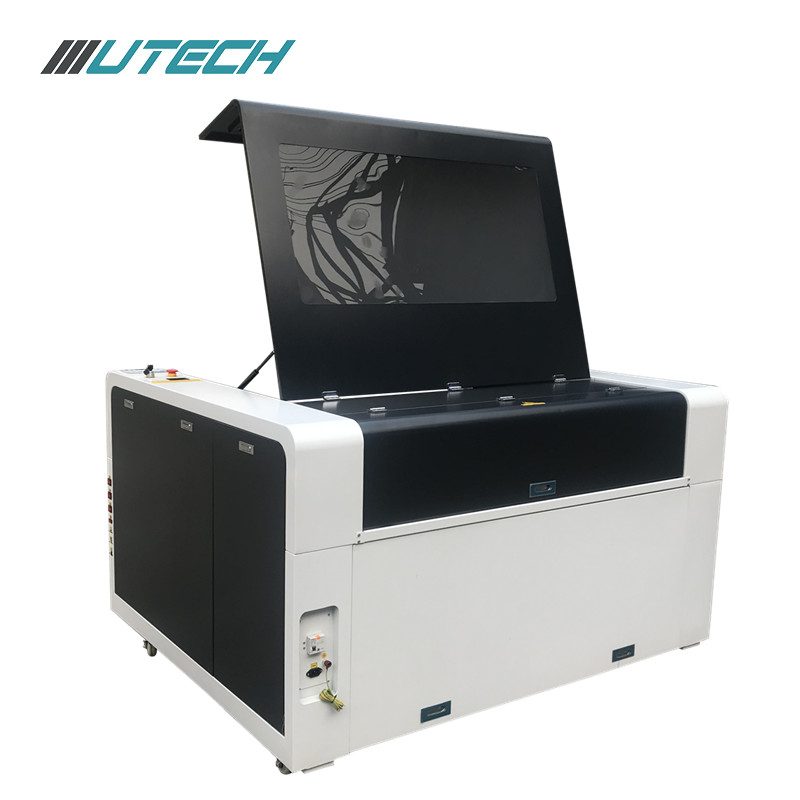

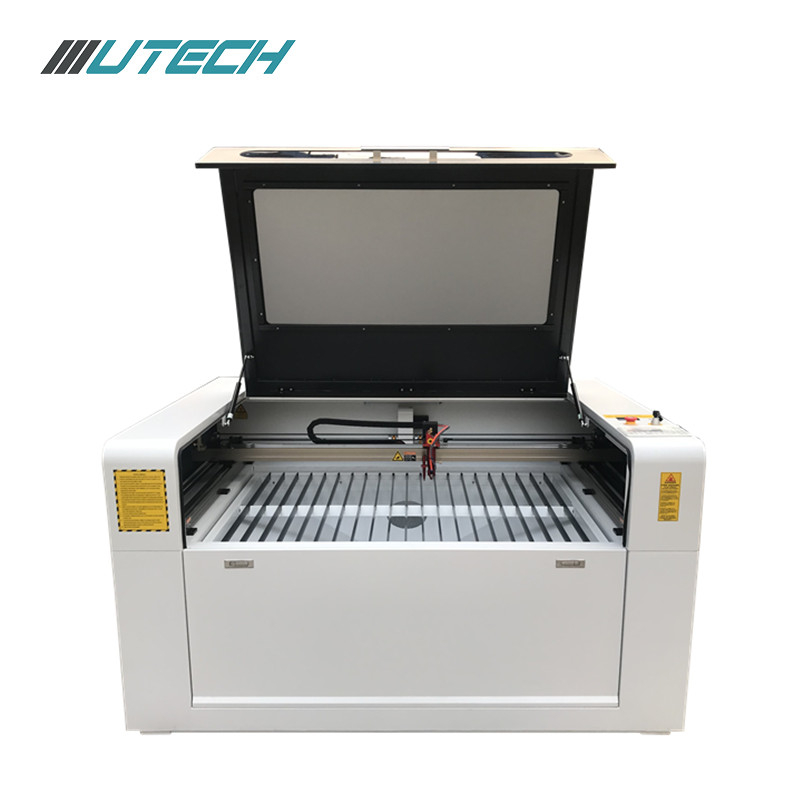

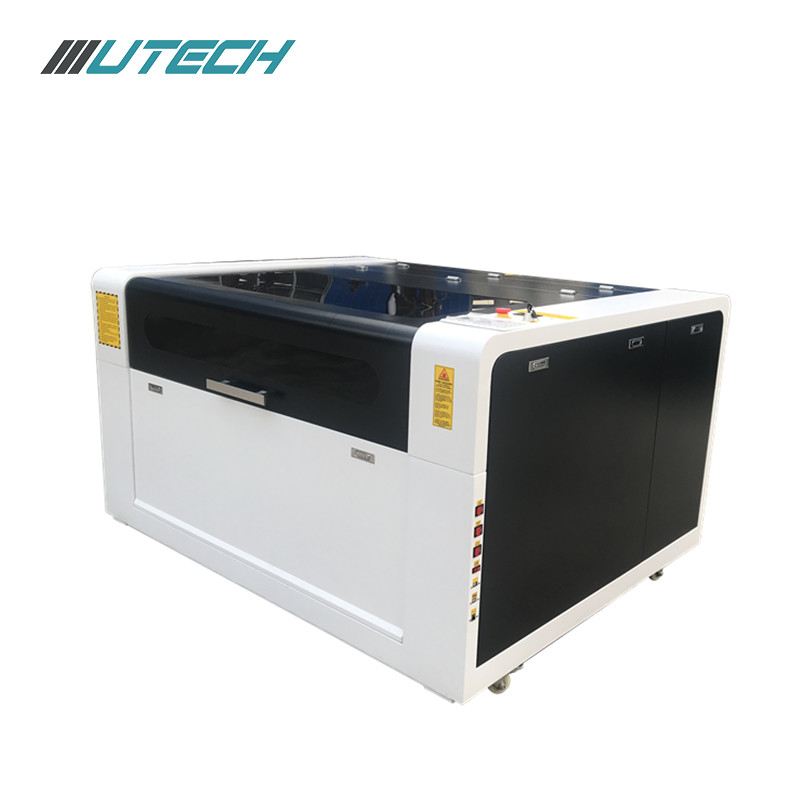

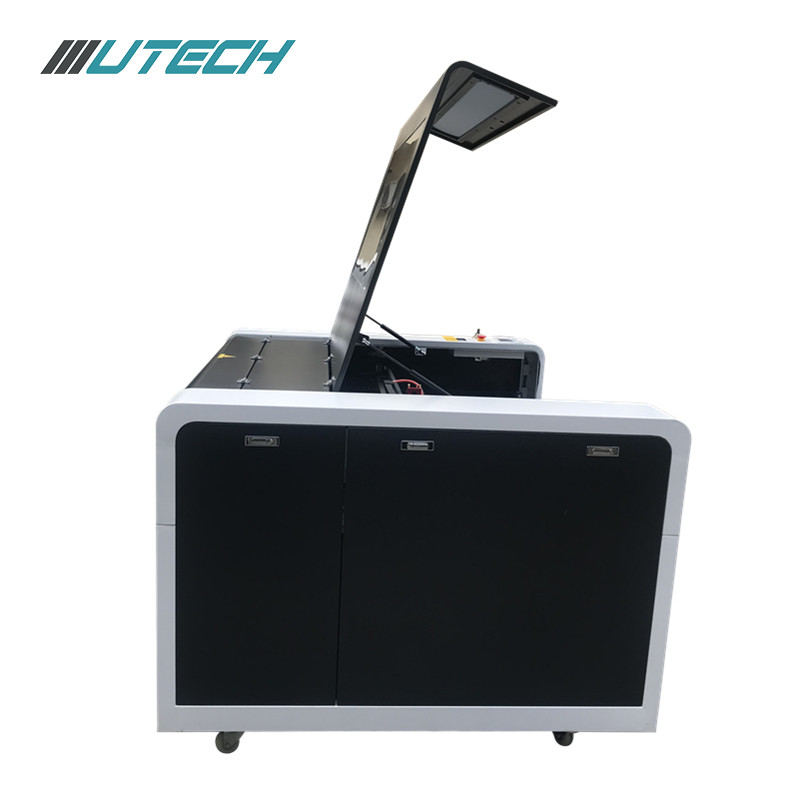

Cnc Laser Cutting Engraving Machine for Non-metallic Materials
CO2 CNC Laser Wood Cutter Machine is for laser cutting engraving for non-metallic materials, such as MDF, wood, acrylic sheet, paper, fabric, rubber, bamboo, marble, glass, cardboard, and crystal, stone, plastic, etc. It is a best choice for hobby laser cutting, school education demonstration, home, small business and shop. 1. Multi-application: it is good at engraving, cutting, etching, marking; 2. This Laser Wood Cutter has a Rotary device for cylindrical engraving / etching, such as a glass cup, and so on; 3. It is compatible with WIN7, Vista, XP, and WIN2000; CO2 laser wood cutter machine plays an important role in advertising, handicraft, decoration, rubber plate, furniture making, and other fields.
Cnc Laser Cutting Engraving Machine for Non-metallic Materials
1. Adopt imported Linear Guiding System and ensure the machines endurability.
2. Motorized UP/Down worktable +Auto-Focus device +Red Light pointer. 3. The Optical Lens adopt high intensity gilding silicon and non sphere focusing lens, So the Lens. Can endure the scrubs and the high temperature and no need no be often changed, thus reduce the resuming cost. The focusing diameter of the non sphere lens is small, and make the cutting effect better. 4. High Quality Laser tube provides the Strong beam and Long service life. 5. Adopt DSP Control System, and moves smoothly. With modularized and unified design and Installment, it has the better ability of anti-interference, so it is easy to inspect and replace the spare parts. 6. The Laser tube adopts compulsive Water Cooling System, Water Pump or Cooling Chiller can control the Temperature automatically. 7. Applicable for the modes like AI, CDR, BMP, DST, DSB and PXF etc. 8. Easily Moving universal Wheel. 9. English Control Panel.
Cnc Laser Cutting Engraving Machine for Non-metallic Materials
1. Adopt imported Linear Guiding System and ensure the machines endurability.
2. Motorized UP/Down worktable +Auto-Focus device +Red Light pointer. 3. The Optical Lens adopt high intensity gilding silicon and non sphere focusing lens, So the Lens. Can endure the scrubs and the high temperature and no need no be often changed, thus reduce the resuming cost. The focusing diameter of the non sphere lens is small, and make the cutting effect better. 4. High Quality Laser tube provides the Strong beam and Long service life. 5. Adopt DSP Control System, and moves smoothly. With modularized and unified design and Installment, it has the better ability of anti-interference, so it is easy to inspect and replace the spare parts. 6. The Laser tube adopts compulsive Water Cooling System, Water Pump or Cooling Chiller can control the Temperature automatically. 7. Applicable for the modes like AI, CDR, BMP, DST, DSB and PXF etc. 8. Easily Moving universal Wheel. 9. English Control Panel.
Model
UT-1390
Working area
1300*900mm(Can be customized)
Laser power
Reci 80w/100w/130w/150w
Laser tube type
Sealed CO2 glass laser tube
Laser tube cooling type
S&A Industrial Water Chiller
Cutting speed
0-24000mm/min
Repositioning accuracy
<0.01mm
Working voltage
AC110v/220v 50Hz/60Hz
Consuming power
<1000w
Laser control system
Ruida
Driving system
Stepper motor
Linear guide
ABBA square rail (sub-brand of SKF)
Working table
Blade table ( Alternative Honeycomb table )
Lens and mirror
American Mirrors
Graphic format supported
DXF
AI
PLT
DST
DSB
BMP
JPG
GIF
PNG
MNG
Software supported
CorelDraw
Photoshop
AutoCAD
Minimum letter size
English:1mm x1mm; Chinese: 2mm x 2mm
Running environment
Temperature: 0°c-45°c; humidity: 5%-95%
Optional parts
UP/Down working table
Rotary
Auto focus
{"type":"2","json":[{"index":"0","tran_value":["UT-1390"],"tran_label":"Model"},{"index":"1","tran_label":"Working area","tran_value":["1300*900mm(Can be customized)"]},{"index":"2","tran_label":"Laser power","tran_value":["Reci 80w/100w/130w/150w"]},{"index":"3","tran_label":"Laser tube type","tran_value":["Sealed CO2 glass laser tube"]},{"index":"4","tran_label":"Laser tube cooling type","tran_value":["S&A Industrial Water Chiller"]},{"index":"5","tran_label":"Cutting speed","tran_value":["0-24000mm/min"]},{"index":"6","tran_label":"Repositioning accuracy","tran_value":["<0.01mm"]},{"index":"7","tran_label":"Working voltage","tran_value":["AC110v/220v 50Hz/60Hz"]},{"index":"8","tran_label":"Consuming power","tran_value":["<1000w"]},{"index":"9","tran_label":"Laser control system","tran_value":["Ruida"]},{"index":"10","tran_label":"Driving system","tran_value":["Stepper motor"]},{"index":"12","tran_label":"Linear guide","tran_value":["ABBA square rail (sub-brand of SKF)"]},{"index":"11","tran_label":"Working table","tran_value":["Blade table ( Alternative Honeycomb table )"]},{"index":"13","tran_label":" Lens and mirror","tran_value":["American Mirrors"]},{"index":"14","tran_label":"Graphic format supported","tran_value":["DXF","AI","PLT","DST","DSB","BMP","JPG","GIF","PNG","MNG"]},{"index":"15","tran_label":"Software supported","tran_value":["CorelDraw","Photoshop","AutoCAD"]},{"index":"16","tran_label":"Minimum letter size","tran_value":["English:1mm x1mm; Chinese: 2mm x 2mm"]},{"index":"17","tran_label":"Running environment ","tran_value":["Temperature: 0°c-45°c; humidity: 5%-95%"]},{"index":"18","tran_label":"Optional parts","tran_value":["UP/Down working table","Rotary","Auto focus"]},null,null]}
Applicable materials: UT-1390 laser machine is equiped with co2 laser tube, can be used for cutting nonmetal materials such as acrylic, plastic, paper, wood, plywood, MDF, fabric, leather, etc; and can engrave on nonmetal materials such as stone, glass, acrylic, wood, bamboo, rubber, leather, etc. Applicable industry: Be applied in garment, leather, cloth toys, computer embroidery cutting, mould, crafts, bamboo and wood, advertising and building decoration, packaging and printing, paper products, etc.
Applicable materials: UT-1390 laser machine is equiped with co2 laser tube, can be used for cutting nonmetal materials such as acrylic, plastic, paper, wood, plywood, MDF, fabric, leather, etc; and can engrave on nonmetal materials such as stone, glass, acrylic, wood, bamboo, rubber, leather, etc. Applicable industry: Be applied in garment, leather, cloth toys, computer embroidery cutting, mould, crafts, bamboo and wood, advertising and building decoration, packaging and printing, paper products, etc.
1. Packing wooden case is after fumigation treatment. Needn’t timber inspection,saving shipping time. 2. All the spare parts of the machine were covered by some soft materials, mainly avoiding all damages that could happen in the delivery process.Then we’ll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof. 3. The outmost is wooden case with fixed formwork. 4. The bottom of the wooden case has firm iron jack, convenient to handling and transport.
1. Packing wooden case is after fumigation treatment. Needn’t timber inspection,saving shipping time. 2. All the spare parts of the machine were covered by some soft materials, mainly avoiding all damages that could happen in the delivery process.Then we’ll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof. 3. The outmost is wooden case with fixed formwork. 4. The bottom of the wooden case has firm iron jack, convenient to handling and transport.
