High Precision 1300*2500mm CNC Router Machine for Advertising

The SESAME CNC Router’s greatest advantage is machine lathe bed and legs could be split freely, accoding to customer’s request, can choose to disassemble the machine when shipping, which could save space and shipping cost. In such a severe international situation, harsh conditions such as difficulty in booking space and rising freight rates have severely hindered the transportation of goods and the normal operation and development of enterprises. SESAME’s disassembly advange would be a shining point in the near future.
Model:
Working Table:
Drive Motors:
XY Structure:
Z Structure:
Spindle Speed:
Operating System:
Availability:
High Precision 1300*2500mm CNC Router Machine for Advertising
High Precision 1300*2500mm CNC Router Machine for Advertising
High Precision 1300*2500mm CNC Router Machine for Advertising
High Precision 1300*2500mm CNC Router Machine for Advertising
High Precision 1300*2500mm CNC Router Machine for Advertising
High Precision 1300*2500mm CNC Router Machine for Advertising
  • S2-1325

  • UTECH

High Precision 1300*2500mm CNC Router Machine

for Advertising


The SESAME CNC Router’s greatest advantage is machine lathe bed and legs could be split freely, accoding to customer’s request, can choose to disassemble the machine when shipping, which could save space and shipping cost. In such a severe international situation, harsh conditions such as difficulty in booking space and rising freight rates have severely hindered the transportation of goods and the normal operation and development of enterprises. SESAME’s disassembly advange would be a shining point in the near future.


SESAME S2


The aluminum alloy T-shaped table is equipped with a patented clamping fixture, which is convenient for customers to disassemble and assemble materials. Optional vacuum adsorption table. If choose vacuum adsorption table, will be matched with T-slot table together. The adsorption table is made of A-grade hard PVC board to prevent deformation.


The machine is equipped with a reducer structure, compared with the characteristics of the looseness, short life, and insignificant deceleration effect of the gearbox and timing belt, the reducer has the advantages of low backlash, low noise, high strength, and accurate deceleration effect.


This ensures the table holds a strong suction and tight tolerances for precision cutting. The machine also can be equipped with a pneumatic roller. This attachment will effectively prevent materials from moving during the cut. For machining thin or small sheet materials that are not easily vacuumed.

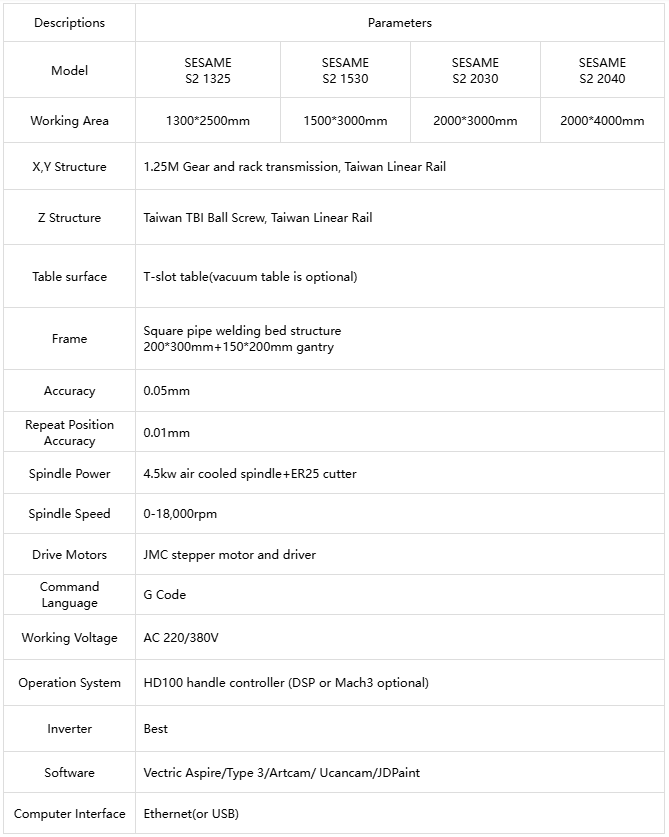

  • Parameters



Descriptions Parameters
Model

SESAME

S2 1325

SESAME

S2 1530

SESAME

S2 2030

SESAME

S2 2040

Working Area 1300*2500mm 1500*3000mm 2000*3000mm 2000*4000mm
X,Y Structure 1.25M Gear and rack transmission, Taiwan Linear Rail
Z Structure Taiwan TBI Ball Screw, Taiwan Linear Rail
Table surface T-slot table(vacuum table is optional)
Frame Square pipe welding bed structure

200*300mm+150*200mm gantry

Accuracy 0.05mm
Repeat Position Accuracy 0.01mm
Spindle Power 4.5kw air cooled spindle+ER25 cutter
Spindle Speed 0-18,000rpm
Drive Motors JMC stepper motor and driver
Command Language G Code
Working Voltage AC 220/380V
Operation System HD100 handle controller (DSP or Mach3 optional)
Inverter Best
Software Vectric Aspire/Type 3/Artcam/ Ucancam/JDPaint
Computer Interface Ethernet(or USB)



High Precision 1300*2500mm CNC Router Machine

for Advertising



Machine parts

High Precision 1300*2500mm CNC Router Machine

for Advertising


* Advertising industry:

Acrylic cutting, density board cutting, snowflake cutting, double color board carving, various advertising boards.


* Furniture industry:

Cabinet doors, wooden doors, solid wood, mahogany furniture, antique furniture, all kinds of composite sheet cutting carving.


* Plate processing industry:

Insulation board, plastic work piece, PCB board, anti-double board, epoxy resin, ABS, PP, PE and other carbon mixtures.


* Crafts industry:

Artificial marble, PVC, wood, plexiglass, copper aluminum and so on.


* Decoration industry:

The screen, wave plate, wood, artificial marble, organic board, decorative board, double color board and other.


Application

Application

High Precision 1300*2500mm CNC Router Machine

for Advertising


SESAME series CNC machines have distinctive designs for international market, highly visual impact. We have already owned the patent of appearance design and other multiple from China.

  • Save the shipping costs.

  • Very convenient for loading and unloading goods.

  • The whole machine assemply process is upgraded.

Machine legs and body can separate freely,which could save some space and shipping freight. Before package, customer could choose dismantle or not, also easy to install. If dismantle, we'll take video for showing how to diamantle and assemble.


A 20 GP container could pack 6 sets PLASMA 1325

A 40 HQ container could pack 20 sets PLASMA 1325


Package and Shipping



High Precision 1300*2500mm CNC Router Machine

for Advertising


Company profile

Certification


FAQ


FAQ
