SESAME Series CNC router is constructed with heavy-duty thickened bed made from welded 200*300mm square tube, side hanging structure, cast iron column and 150*200mm gantry. Be equipped with CNC machining center finishing precision aviation aluminum head parts.
| Structure: | |
|---|---|
| Cutting Area: | |
| Working Table: | |
| Spindle: | |
UT-1325
UTECH
Sculpture Wood Carving Cnc Router Machine Plywood Plastic Cnc Engraver for Sale
One wood box: 2/3 sets SESAME 1325
One container: 6 sets SESAME 1325
You are making a very smart decision, having CNC Router equipment in your business will be a watershed, our SESAME model is the precise investment for your company, this model as an entry-level device, is presented with a very low price and industrial benefits so that your enterprise can grow and reach the next level that we know you are looking for.

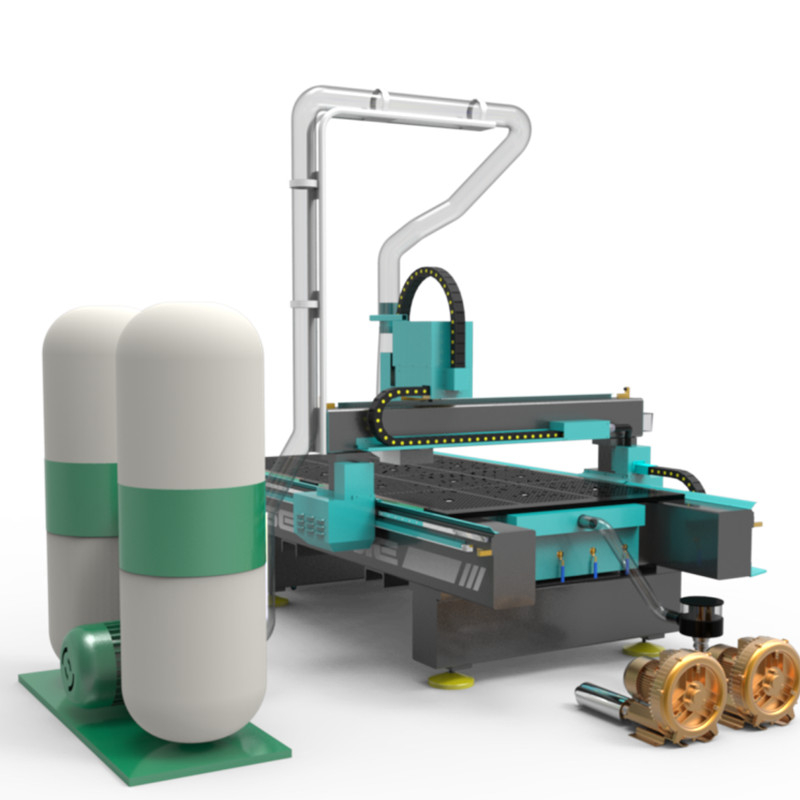

The SESAME CNC Router is a cost-effective and feature-rich CNC Router that opens many avenues for your business. The SESAME CNC Series is constructed with a heavy-duty thickened bed made from welded 200*300mm square tube, aside from hanging structure, heavy-duty column, and 150*200mm gantry. Industrial quality linear bearings with high precision rails on every axis give less rolling moment resistance which translates to more torque from the motors.
The SESAME CNC Series CNC router comes equipped with a 4.5kw Air-cooled spindle, ER25 collets, which much suitable for basic advertising and the woodworking industry. This machine is equipped with a handle controller, doesn't need to connect with a computer, the interface is simple and easy to operate, if you’re an entry-level user, it would be a good choice. The machine is equipped with a reducer structure, compared with the characteristics of the looseness, short life, and insignificant deceleration effect of the gear box and timing belt, the reducer has the advantages of low backlash, low noise, high strength, and accurate deceleration effect.
It's assembled by UTECH professional assembly team’s precision meter assembly to ensure that the repeat positioning accuracy is ±0.01mm, and the accuracy of returning to the machine origin is ±0.02mm.
The aluminum alloy T-shaped table is equipped with a patented clamping fixture, which is convenient for customers to disassemble and assemble materials. Optional vacuum adsorption table. If choose vacuum adsorption table, will be matched with T-slot table together, the adsorption table is made of A-grade hard PVC board to prevent deformation.
This ensures the table holds a strong suction and tight tolerances for precision cutting. The machine also can be equipped with a pneumatic roller. This attachment will effectively prevent materials from moving during the cut. For machining thin or small sheet materials that are not easily vacuumed.
SESAME CNC Router's Parameters:
| Model | UT-1325/UT-1530/UT-1632/UT-2131/UT-2141 |
| Accuracy | ±0.02mm |
| Table Surface | Vacuum/T-slot table OR Double table |
| Frame | Square pipe welding bed structure 200*300mm+150*200mm gantry |
| X, Y Structure | 1.25M Helical gear rack transmission, Taiwan Linear Rail Guide |
| Z Structure | Taiwan TBI Ball Screw, Taiwan Linear Rail Guide |
| Spindle Power | 4.5kw air cooled spindle+ER25 cutter |
| Spindle Speed | 18000-24000RPM |
| Drive Motors | JMC stepper motor and driver+UTECH patent typre reducer |
| Operating System | HD100 handle controller (DSP or Mach3 optional) |
| Dust Collector | 2.2kw/3kw/5.5kw/7.5kw |
| Software | Vectric Aspire/Type 3 /Artcam /Ucancam/JDPaint |
Why Choose US?
The SESAME CNC Router’s greatest advantage is machine lathe bed and legs could be split freely, accoding to customer’s request, can choose to disassemble the machine when shipping, which could save space and shipping cost. In such a severe international situation, harsh conditions such as difficulty in booking space and rising freight rates have severely hindered the transportation of goods and the normal operation and development of enterprises. SESAME’s disassembly advange would be a shining point in the near future. The UTECH team has tested and implemented many loading and unloading solutions, such as 2/3 machines to pack a same wooden box; a 20GP container to package 6 sets SESAME 1325, a 40HQ container to package 20 sets SESAME 1325, etc.
Before the machine leaves the factory, each machine will undergo rigorous testing. You can leave the factory only after reaching the standard, and you will get a perfect device that can be used directly. And we provide local services, such as the United States, Mexico, Peru, France, Spain, Romania and other countries.
As the epidemic situation is getting more and more severe today, the UTECH team will do everything possible to overcome all difficulties for you.
Applicable Industry
Packing&Delivery
Packing:
1/ If the machine is delivered via LCL, then would be packed with wrapping film, EPE foam, and a standard export plywood box.
2/ If machine delivery via FCL, then don't need a wood box, would be packed with wrapping film and EPE foam.
Shipping:
We support machine delivery via express, air transportation, land transportation, and sea transportation.
1/ Such as some small machine, Mini CNC Router or Small CO2 Laser Machine and Fiber Laser Marking Machine, usually delivered via
express and air transportation.
2/ If you wanna us to help you deliver to a domestic warehouse or Russia, Kazakhstan, etc, usually delivered via land transportation.
3/ Large machines or some countries where shipping is more convenient, usually suggest choosing sea transportation.
You can choose any way you'd prefer, we also will give you some proper suggestions.
