Industrial Multifunction Cnc Router For Advertising

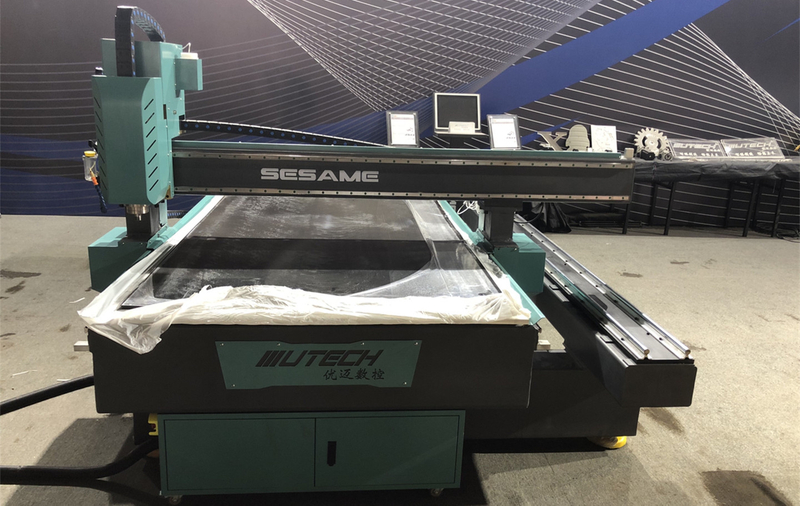

UTECH Sesame Series S2 CNC Router, Which has detachable structure, can greatly save freight.
Spindle Motor:
Control system:
XYZ Transmission:
X,Y,Z Guide Rail:
Command:
Availability:
Industrial Multifunction Cnc Router For Advertising
Industrial Multifunction Cnc Router For Advertising
Industrial Multifunction Cnc Router For Advertising
Industrial Multifunction Cnc Router For Advertising
Industrial Multifunction Cnc Router For Advertising
Industrial Multifunction Cnc Router For Advertising
  • UT-1325

  • UTECH

  • UT-1325

Professional High-Precision 4x8FT Cnc Router For Woodworking

lADPDh0cPtQV98bNAorNB4A_1920_650Features:

According to overseas custom demand and market research, as for the overall design structure of the bed body, we adopt separated type lathe bed structure. With the purpose of After ensuring that the customer receives the equipments, there's no need to make a complete disassembly and will not affect the operation of the equipment. In this circumstance, we optimized the design structure, then, the final packaging size of the product was saved by 5 cubic meters. Thus saving transportation costs.

The machine main body and the machine legs are freely separable when delivery the legs are disassembled and put on the table, which will reduce the machine's package size, then will save the shipping cost.

lADPDiCpvXiBp6jNAorNB4A_1920_650lALPDhmOwC7umo_NAorNB4A_1920_650


Configurations:

Standard Parts:

#.Model: Sesame-1325 3 axis cnc wood router machine

#.Working Area: 1300*2500*180mm
#.Spindle Power: 4.5KW water cooling spindle(you can also choose 4.5kw air cooling spindle)
#.Spindle cooling way: Water pump
#.Inverter: JMC Inverter
#.Table: Vacuum table with T-slot table
#.X, Y, Z axis Transmission Way: X Y axis 1.25 helical tooth rack transmission, Z axis Taiwan TBI Ball Screw transmission
#.Guide Rail: Taiwan PMI linear rails+Flange Slider
#.Drive Motors: JMC 860H driver+Patent type stepper reducer*3+450B stepper motor
#.Operating System: NC-Studio control system
#.Command Language: G Code

Optional parts:
1. 3, 6KW water cooling or air cooling spindle
2. Water-Cooling Table-Water tank
3. Control system: Rich auto-A11 DSP control system(option:Mach3)
4. Inverter: Delta, Fuling Inverter.
5. Motor and driver: servo motor and driver.
6. Dust collector.
7. The vacuum pump(optional water cooling or air cooling).

8. T-slot table

Details:


Model Sesame
Working Area 1300*2500*180mm
1300*2500*200mm 1120*2440*180mm
Table structure T-slot table
Transmission Device X, Y axis:  Precision helical tooth gear transmission
Z axis: Precision tBI ball screw
Travel speed 0-25000mm/min
Working speed 0-18000mm/min
Driving mode Patent stepper reducer structure
Spindle power 4.5KW water cooled spindle motor
Spindle speed 0-24000rpm
Diameter of cutter φ3.175-φ12.7mm
Command code HPGL G-code
Working voltage AC220V/Hz
Device interface Standard PCI/USB interface optional
Resolution 0.01mm
Machine size(W*D*H) 1935*3015*1500mm
Warranty 12 months
12 months 1000kg

Warm tips: all parts of the machine can be upgraded or changed. Please tell us your material and size. We will customize the most suitable machine for you.

CONFIGURATION
4kw water/4.5kw air cooled spindle
Nc-studio controller
XY axis by Patent type reducer structure 1:4+450B transmission structure, Z axis by Taiwan TBI ball screw(Disc coupling direct connection.); XYX axis by JMC 860 driver.
Xinfutai inverter
Double stop protection device
Portable control box, place the position saving device to take up space.
The equipment is equipped with a professional forklift station to facilitate loading and unloading equipment.
Humanized mechanical structure design, optimized
product packaging method to save transportation cost.
Taiwan PMT 20 guide rail+20mm flange slider
Y-axis double protection anti-dust optimization design,better protection of linear guide service life.
Nc center precision machining T6 material precision
machine head accessories set.
Square pipe welding bed structure.
T-slot table
Electronic inductance limit switch.
Tool sensor
Tool box(parameter list/controller install software/drawing software/etc),cutters, etc.

Application:


Advertising industry

Acrylic cutting, density board cutting, snowflake cutting, double color board carving, various advertising boards.

Furniture industry

Cabinet doors, wooden doors, solid wood, mahogany furniture, antique furniture, all kinds of composite sheet cutting carving.

Plate processing industry

Insulation board, plastic work piece, PCB board, anti-double board, epoxy resin, ABS, PP, PE and other carbon mixtures.

Crafts industry

Artificial marble, PVC, wood, plexiglass, copper aluminum and so on.

Decoration industry

The screen, wave plate, wood, artificial marble, organic board, decorative board, double color board and other materials on various exquisite patterns and text carving.

应用

1. 4.5KW Utech air cooling spindle

Because the accuracy of cnc router machine greatly depends on the spindle. The High-quality SESAME series CNC Router machine comes with 4kw water or 4.5 air cooled high-frequency spindle. This precision spindle requires no maintenance, uses industry standard ER collects. Fully programmable speeds from 6000 to 24000RPM, and comes complete with pneumatically retractable vacuum hood.

2.Vacuum table with T-slot.

Vacuum tables are devices that use suction to securely hold work pieces during machining. They are most commonly used during CNC cutting, whether with a mill or router or with a drag knife. They can be various sizes, and they are comprised of a perforated table top connected to the vacuum chamber, and a vacuum pump that continuously applies suction.

3.Z-axis Transmission Way.

TBI High-Precision Ball-screw Transmission (Taiwan)

1) Higher efficiency than traditional ball screws.
2) Gothic groove shape, the shaft direction clearance can be adjusted to a minimum and can be easily transferred.
3) The internal circulation method is applicable to many different scenes, and the circulation method is selected according to its own needs.

4) Use rigorous materials, high heat treatment and processing technology to supply durable products.

4.Stepper motor.

The stepper motors are installed on all axes to ensure precise positioning of the gantry and the spindle in accordance with a predetermined program at high speed. Stepper motors are well proven high degree of reliability.
The machine is installed 4 sets of motors and Driver. Y-axis

use double motors drivers way.

5.Utech Patent 1:4 Reducer Structure.

Patent design 1:4 gear reducer install on the driving motor, makes the motor is more powerful, and having a long time service life.

6.Stepper Driver.

Selecting a chopper driver and configuring it for a specific motor requires a good understanding of both the motor and the controller. Mismatched motors and drivers can result in disappointing performance. Or worse: damage to the motor and/or controller. we deal with the most important part: making sure that your motor and driver are compatible

7.Famous electrical components.

CNC electronics are a vital part of any CNC machine. Aside from the Motors and CNC controllers, There are many electronic components that assist in the machine operation.
Many people feel more threatened by electrical components than the mechanics of a machine. we create a fully working machine.

8.Mach3 control system.

Mach3 turns a typical computer into a CNC machine controller. It is very rich in features and provides a great value to those needing a CNC control package. Mach3 works on most Windows PC's to control the motion of motors (stepper & servo) by processing G-Code. While comprising many advanced features, it is the most intuitive CNC control software available. Mach3 is customizable and has been used for many applications with numerous types of hardware.

9.Tool sensor.

This device takes the guesswork out of tool changes and ensures that every tool path that you run is accurate. Consistent Z height across tool changes is critical, especially when running multi-tool jobs like cabinet work, raised panel doors and intricate 3D carving projects.
CNC Tool Sensor allows for easy and accurate "Z" zero position for single and multiple tool changes through the program.

10.Manual oil lubrication system.

Protecting machinery is an ongoing responsibility. To guarantee high performance over the course of time requires both long-term and spontaneous maintenance. A manual lubricator not only distributes grease or lubrication for a variety of large machinery, but it also allows operators to do so in a timely manner.

11.Double Insurance Emergency Stop Button.

There is double insurance emergency stop switch. In case of any emergency, the worker can press any emergency stop button and the machine will stop working.
