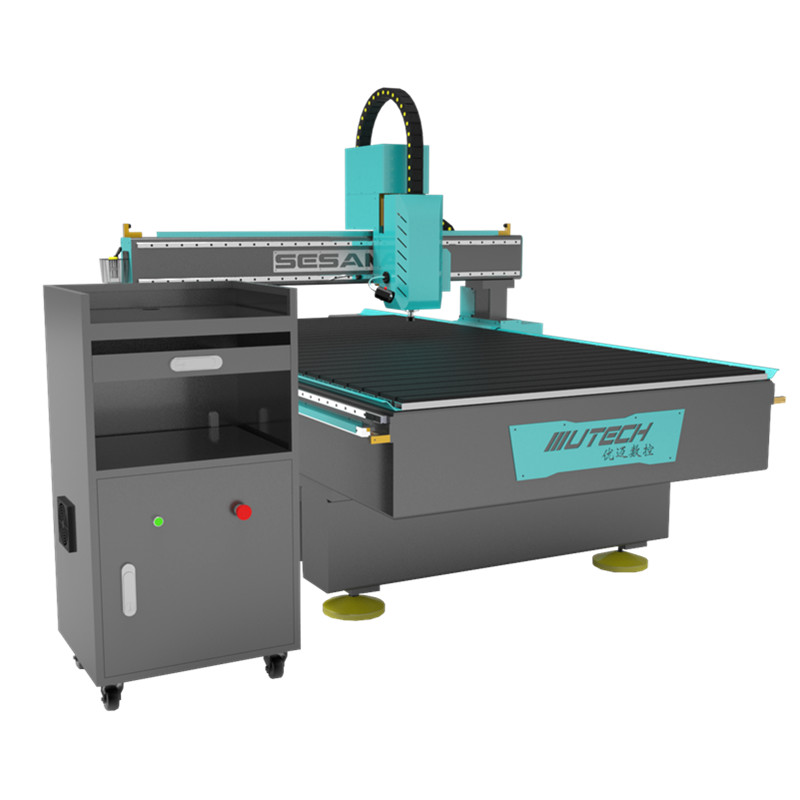

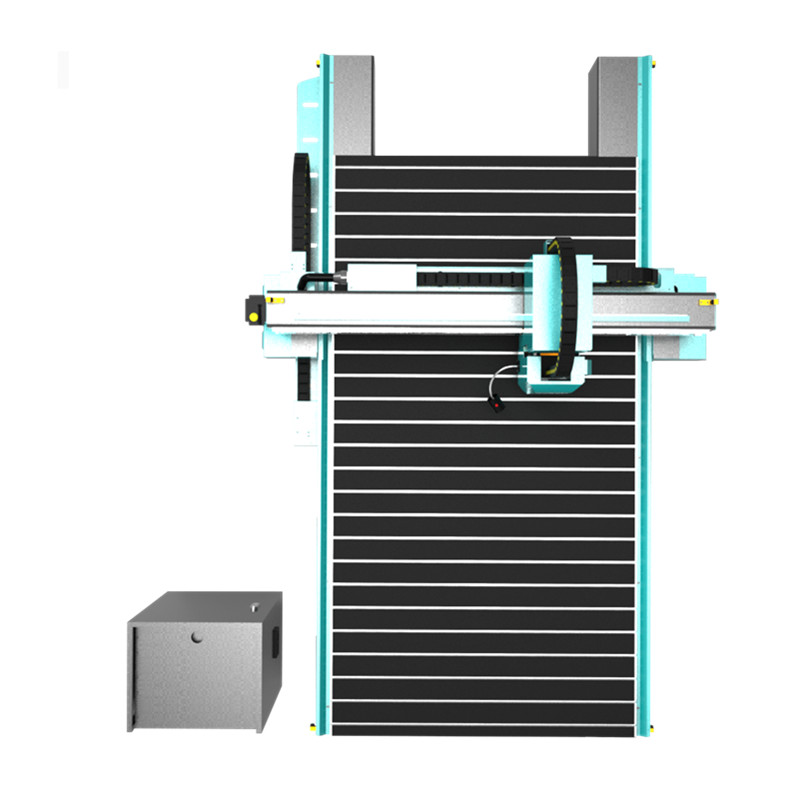

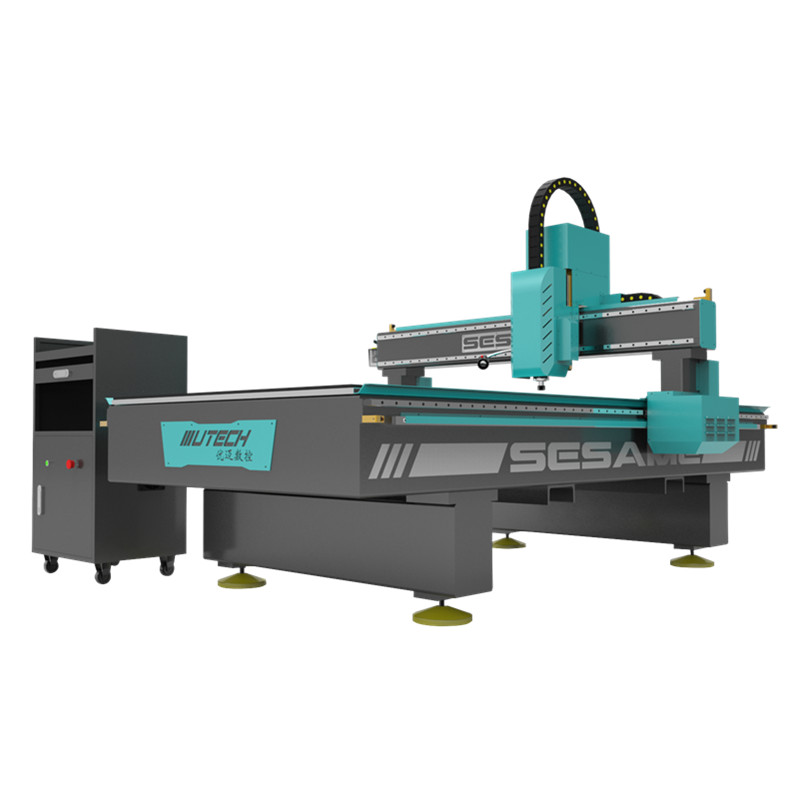

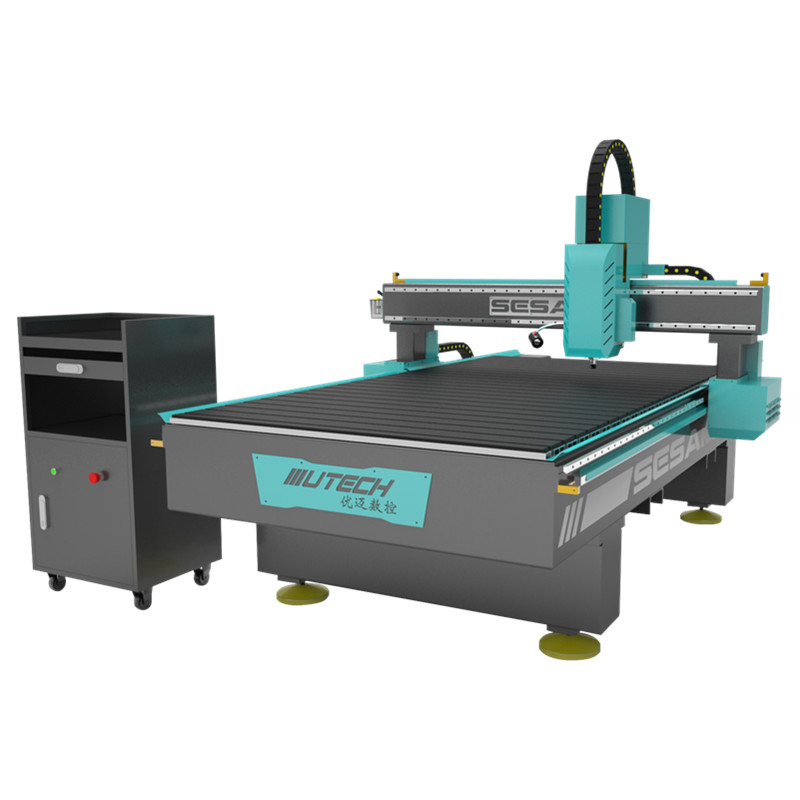

Woodworking Detachable Cnc Router With CCD Camera For Billboard

Based on Sesame Cnc router, equipped with a professional 1.5-megapixel industrial camera, powerful image recognition, more accurate cutting.
Working Area:
Driving System:
Spindle Motor:
Spindle Speed:
Availability:
Woodworking Detachable Cnc Router With CCD Camera For Billboard
Woodworking Detachable Cnc Router With CCD Camera For Billboard
Woodworking Detachable Cnc Router With CCD Camera For Billboard
Woodworking Detachable Cnc Router With CCD Camera For Billboard
Woodworking Detachable Cnc Router With CCD Camera For Billboard
Woodworking Detachable Cnc Router With CCD Camera For Billboard
  • Sesame

  • UTECH

  • UT-1325

Sesame Series Wood Cnc Router With Rotary For Advertising And Sign Making

Patent separable structure

The legs and body of SESAME CNC can be separated freely, save packing volume and shipping cost.

l If you are an individual buyer: 2 sets/3 sets can be packed in a wooden box

l If you're a dealer

a 20’GP container to package 6 sets SESAME 1325.

a 40’HQ container to package 14 sets SESAME 1325.

Easy to install the disassembly method and installation guide video so that you have no worries at home.

CCD-2

The SESAME CNC Router is a cost-effective and feature-rich CNC Router that opens many avenues for your business. The SESAME CNC Series is constructed with a heavy-duty thickened bed made from welded 200*300mm square tube, aside from hanging structure, heavy-duty column, and 150*200mm gantry. Industrial quality linear bearings with high precision rails on every axis give less rolling moment resistance which translates to more torque from the motors.

The SESAME CNC Series CNC router comes equipped with a 4.5kw Air-cooled spindle, ER25 collets, which much suitable for basic advertising and the woodworking industry. This machine is equipped with a handle controller, doesn't need to connect with a computer, the interface is simple and easy to operate, if you’re an entry-level user, it would be a good choice. The machine is equipped with a reducer structure, compared with the characteristics of the looseness, short life, and insignificant deceleration effect of the gear box and timing belt, the reducer has the advantages of low backlash, low noise, high strength, and accurate deceleration effect.

It's assembled by UTECH professional assembly team’s precision meter assembly to ensure that the repeat positioning accuracy is ±0.01mm, and the accuracy of returning to the machine origin is ±0.02mm.

The aluminum alloy T-shaped table is equipped with a patented clamping fixture, which is convenient for customers to disassemble and assemble materials. Optional vacuum adsorption table. If choose vacuum adsorption table, will be matched with T-slot table together, the adsorption table is made of A-grade hard PVC board to prevent deformation.
This ensures the table holds a strong suction and tight tolerances for precision cutting. The machine also can be equipped with a pneumatic roller. This attachment will effectively prevent materials from moving during the cut. For machining thin or small sheet materials that are not easily vacuumed.

CCD2

Details:

Descriptions

Parameters

Model

SESAME S2 1325

SESAME S2 1530

SESAME S2 2030

SESAME S2 2040

Working area

1300*2500mm

1500*3000mm

2000*3000mm

2000*4000mm

Accuracy

±0.05mm

Table Surface

Vacuum & T-slot table

Frame

Square pipe welding bed structure 200*300mm+150*200mmgantry

X, Y Structure

1.25M Gear and rack transmission, Taiwan Linear Rail

Z Structure

Taiwan TBI Ball Screw, Taiwan Linear Rail

Spindle Power

5.5kw water cooled spindle+ER25 cutter

Spindle Speed

0-24000RPM

Drive Motors

JMC stepper motor and driver

Working Voltage

AC 220/380V

Command Language

G Code

Operating System

HD100 handle controller (DSP or Mach3 optional)

Computer Interface

Ethernet (or USB)

Dust Collector

2.2kw

Inverter

Best

Software

Vectric Aspire/Type 3 /Artcam /Ucancam/JDPaint

CCD官网尺寸


Description:

1. Adopt heavy-duty lathe bed, square pipe welded, side hanging structure, heavy column, 150*200mm gantry, ensure the overall operation stability of the equipment.

2. The transmission model adopts a precision reducer match with brand gear rack, large torque, low noise, and high transmission precision accuracy.

3. Single system control, eliminating the switching system of the second boot, save time and effort.

4. Tracing-edge cutting for different materials, KT board, PVC, photo paper to achieve no burr cutting.

5. Equipped with a professional 1.5-megapixel industrial camera, powerful image recognition, more accurate cutting

6. The machine supports DXFJPGPNGNCand other formats, not only with automatic tracing-edge but also support the function of the CNC router.

CCD官网详情页

Applications:

♦ It mainly used for woodworking industry, door, cabinets, kitchen utensils, chairs, decoration business, mould industry, wood panel, wave board processing, MDF sheet carving, screen, calligraphy tablet design , relief, wood furniture, computer tables, panelfurniture, office furniture, instrument industry, and so on.

♦ It can also for advertising signs, acrylic brands, 3D characters, garden or wall decoration, logo, forming system module, billboard, plate, LED/neon channel, literal-hole cut, blister Light box mold.

CCD 应用
