Portable Industrial Plasma Cnc Router Machine

UTECH Plasma Series Copper Aluminum CNC Plasma Cutting Machine
Size:
Spindle Motor Power:
Certification:
Availability:
Portable Industrial Plasma Cnc Router Machine
Portable Industrial Plasma Cnc Router Machine
Portable Industrial Plasma Cnc Router Machine
Portable Industrial Plasma Cnc Router Machine
Portable Industrial Plasma Cnc Router Machine
Portable Industrial Plasma Cnc Router Machine
  • UT-1325P

  • UTECH

  • UT-1325P

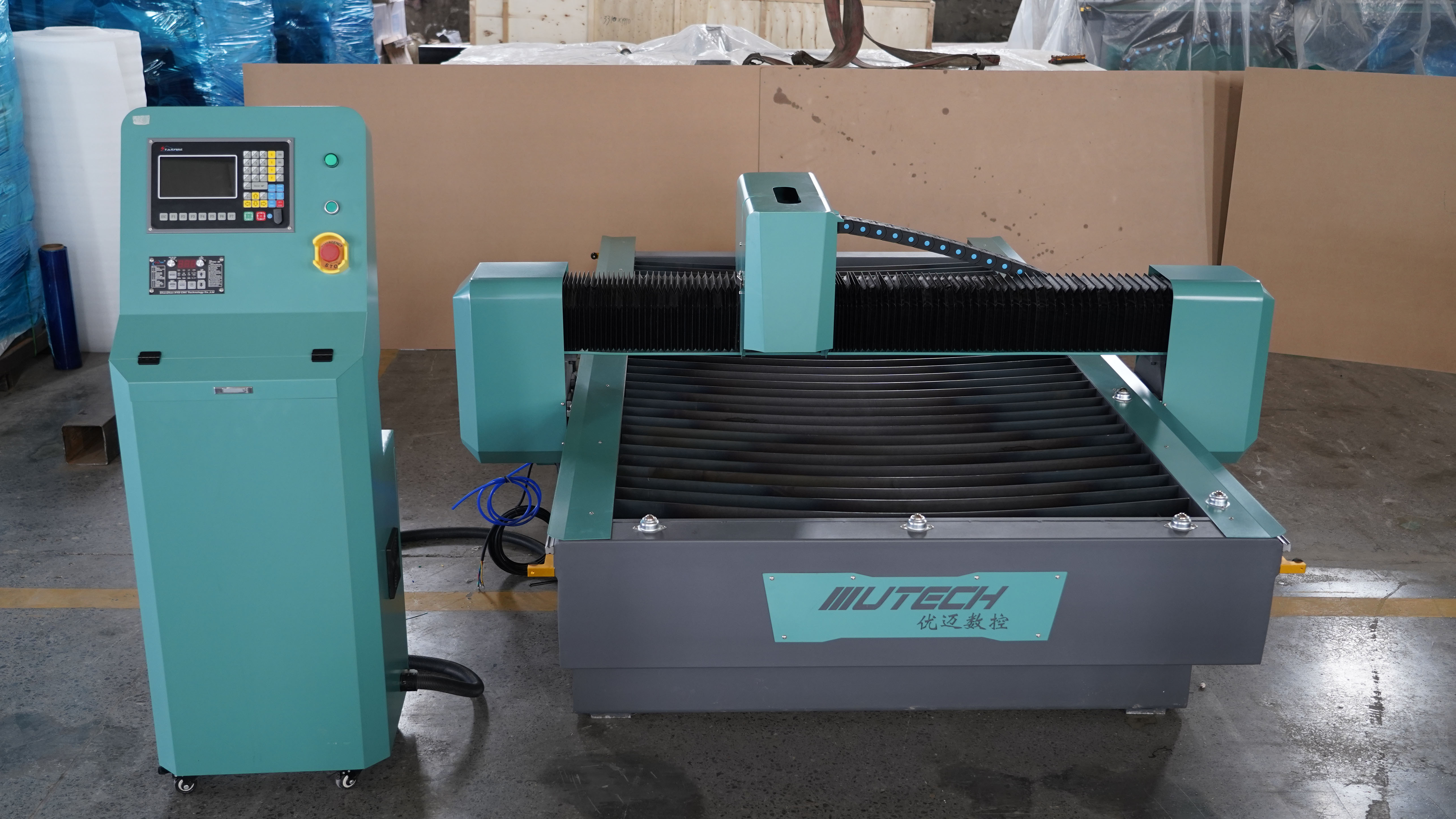

UTECH 1325 Plasma CNC Machine For Metal Copper


plasma cutter 1

Feature


UTECH plasma cnc machine, which widely used for metal processing industry, advertising industry,and all kinds of carbon materials cutting, mild steel materials cutting and nonferrous metal precision sheet metal cutting.

Working area: 1200*1200mm, 1300*2500mm, 1500*3000mm, 2000*4000mm etc. Plasma power: Huayuan 63A, 100A, 120A, 160A, 200A Hypertherm 45A, 65A, 85A, 105A, 125A,

If you need , we can add rotary axis, and for rotation, it is mainly used for cutting round pipe. if users want to cut stainless steel or aluminum plate or iron with different thickness, the power supply and control system is also different. Generally speaking, it is multifunctional cutting machine plasma with good durability.


Applicable Materials:



Aluminum, Copper, Titanium, Nickel, Iron, Galvanized Sheet, White Steel, Titanium Plate, Carbon Steel, Stainless Steel, Alloy Steel, Composite Metal.


MACHINE PARAMTER:

MACHINE PARAMTER
Processing area
1300*2500mm
Working thickness
30mm
Z axis feeding height
180mm
Working material
Iron, aluminum, titanium, stainless steel and others
Power
10.5KW
Input voltage
380V/220V/110V
Power supply frequency
50HZ/60HZ
Plasma power supply
100A
Driving mode
Gear driving
Mode of motion
Gantry driving
X axis motor and drive
JMC Stepper motor and drive
Overall dimension
2200*3300mm
Cooling System
DSP A12S or STARFIRE
Guide rail
Taiwan PMI linear square rail
Plasma generator(power)
Huayuan or Hypertherm plasma(USA)
Plasma cutting gun
huayuan or Hypertherm plasma cutting gun
Floating cutting gun mode of motion
Automatic and Pneumatic test
System
Beijing Start controlling system
Floating adjustable block
Beijing Start Floating adjustable block


1. Cutting faster, more accurate control, the cutting surface is more smooth, no glitches, no black; cutting holes in high quality

2. Stability and reliability for light path system and control system

3. Humanizing design, convenient operation

4. High-performance price ratio, low operating cost >High cutting efficiency, and quality, no noisy. Small heat influence area, cutting seam smooth and no deformation, post-treatment is not needed

5. The machine adopts Beijing START plasma control system, standard high sensitivity arc voltage device

6. High precision stepper motor and driver, ensure the efficiency and accuracy, increasing the stability and reliability greatly

Standard Configurations:


1) standard working area 1300*2500mm working area

2) Beijing STARFIRE control system 63A+ARF Height Controller(Automatic Rise and Fall)

3) JMC stepper motor&driver

4) Gear rack and square rail guide transmission

5) Sawtooth table

6) Heavy duty machine body with 5mm thick square tube

7) FASTCAM software

8) Instruction of STARFIRE control system and FASTCAM software.

9)Huayuan 120A plasma Power(Optional: Hypertherm power supply)

10)Cutting Material Collection Box with wheels, for easy take out products



Optional parts:


1) Servo motor&driver(any brnad)

2) Huayuan 63A, 100A, 120A, 160A, 200A; Hypertherm 45A, 65A, 85A, 105A, 125A

3) Water tank/Water table

4) Flat table Etc.


Packing:

1/ If machine delivery via LCL, then would packed with wrapping film, EPE foam, and standard export plywood box.
2/ If machine delivery via FCL, then dont need wood box, would packed with warpping film and EPE foam.

Shipping:

We support machine delivery via express, air transportation, land transportation and sea transportation.
1/ Such as some small machine, Mini CNC Router or Small CO2 Laser Machine and Fiber Laser Marking Machine, usually delivery via
express and air transportation.
2/ If you wanna us help you delivery to domestic warehouse or Russia, Kazakhstan etc, usually delivery via land transportation.
3/ Large machine or some countries where shipping is more convenient, usually suggest choose sea transportation.
